Signal Waveform & Data

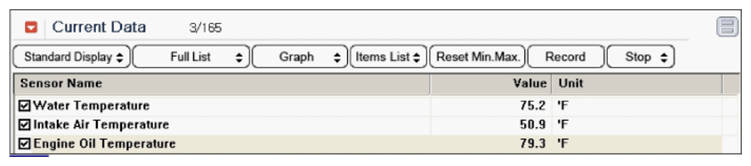

Fig 1: Scantool Display - Normal Data Of IATS & ECTS & EOTS At Ig On
G07393001Courtesy of KIA MOTORS AMERICA, INC.

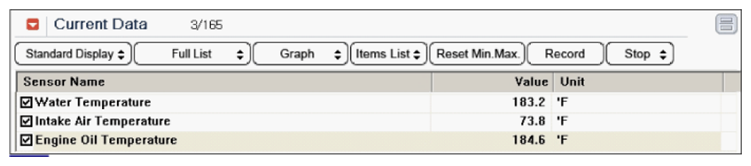

Fig 2: Scantool Display - Normal Data Of IATS & ECTS & EOTS After Warming Up
G07393002Courtesy of KIA MOTORS AMERICA, INC.

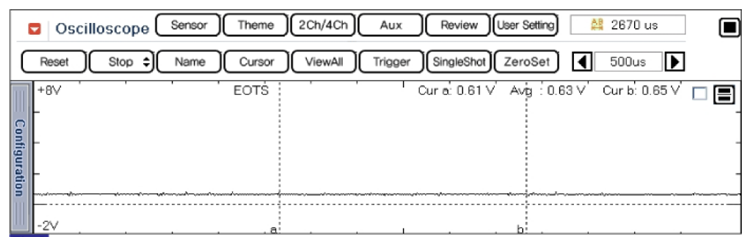

Fig 3: Screen Display - Normal Waveform Of EOTS
G07393003Courtesy of KIA MOTORS AMERICA, INC.
