Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON".
  3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
  4. Read "DTC Status" parameter.

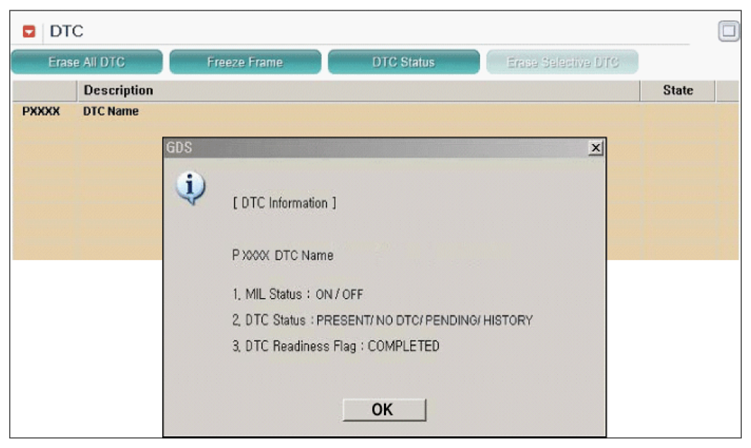

    Fig 1: Scantool Display - DTC Status
    G07392837Courtesy of KIA MOTORS AMERICA, INC.
  5. Is parameter displayed "Present fault"?

    YES

    NO
