Component Inspection

Check IATS resistance

Measure resistance between signal and ground terminals of IATS connector after checking out the temperature of IATS with GDS. (Component Side)

Specification:

RESISTANCE SPECIFICATION

Temp. (°C)	Resistance (kΩ)	Temp. (°C)	Resistance (kΩ)
-40	40.93~48.35	20	2.31~2.57
-20	13.89~16.03	40	1.08~1.21
0	5.38~6.09	60	0.54~0.66
10	3.48~3.90	80	0.29~0.34

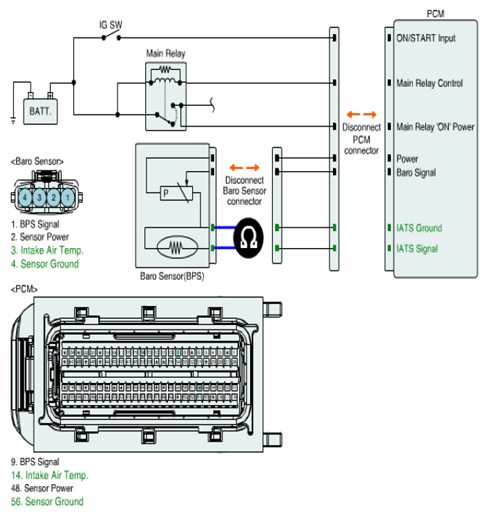

Fig 1: Measuring Resistance Between Signal & Ground Terminals Of IATS Connector

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured resistance within specification?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good IATS and check for proper operation. If the problem is corrected, replace IATS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
