Signal Waveform & Data

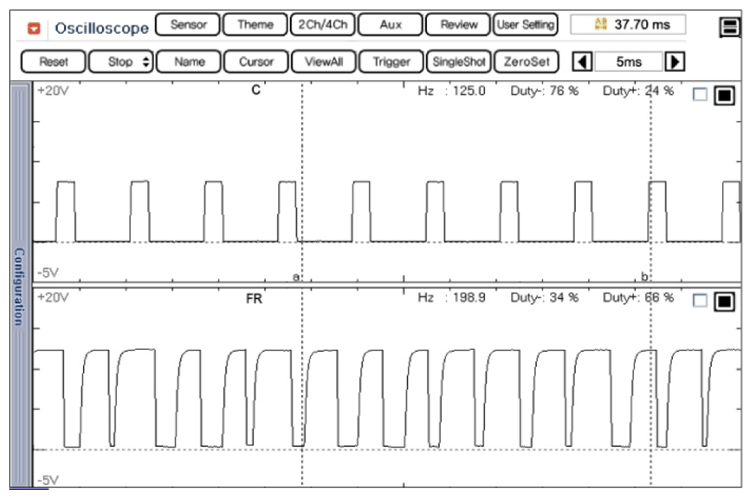

Fig 1: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle
G07393565Courtesy of KIA MOTORS AMERICA, INC.

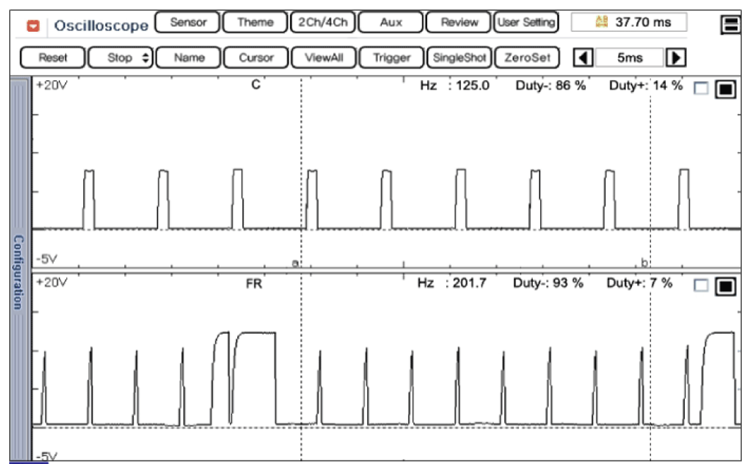

Fig 2: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator Under High Electronic Load Condition
G07393566Courtesy of KIA MOTORS AMERICA, INC.

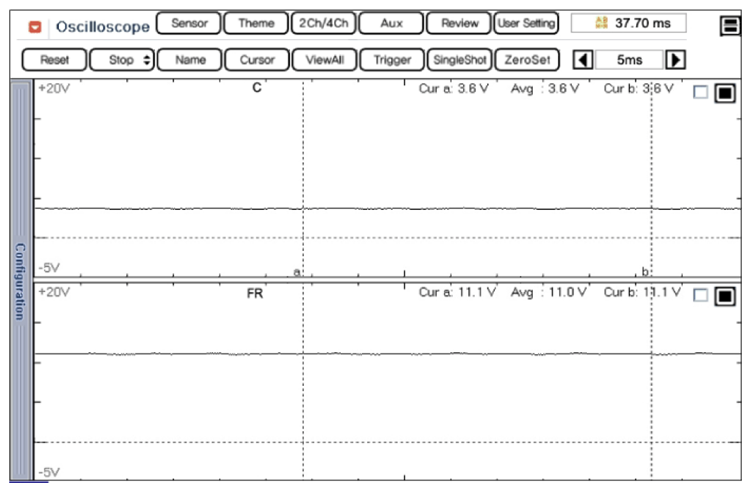

Fig 3: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Ig On Under Connector Disconnected Condition
G07393567Courtesy of KIA MOTORS AMERICA, INC.

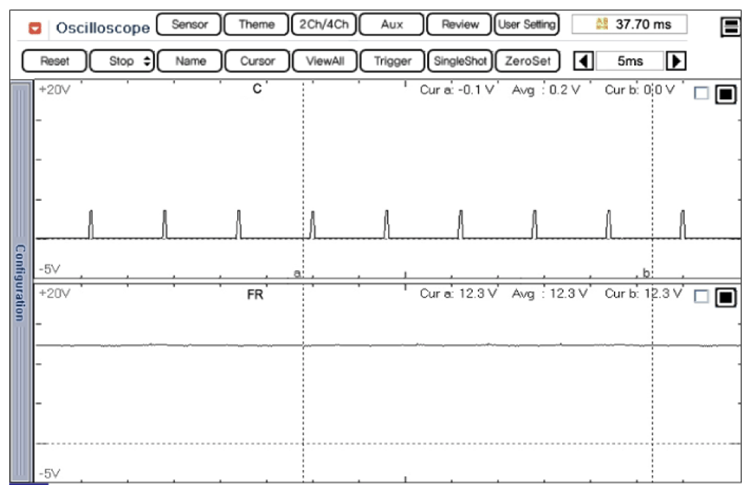

Fig 4: Screen Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle Under Connector Disconnected Condition
G07393568Courtesy of KIA MOTORS AMERICA, INC.
