Signal Waveform & Data

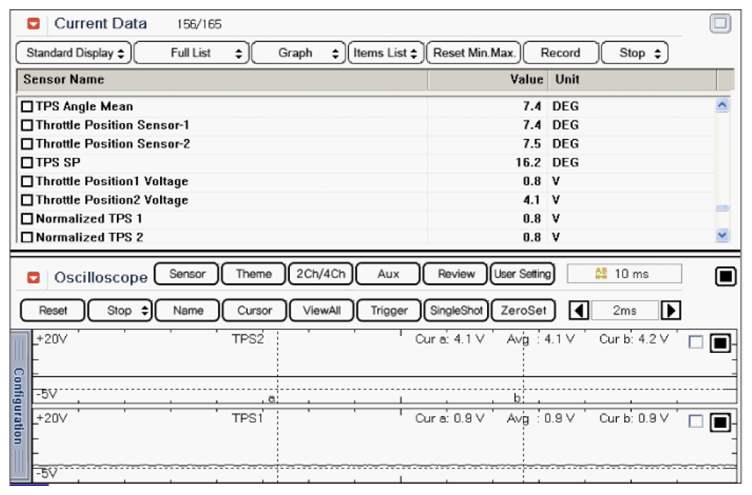

Fig 1: Scantool Display - Normal Data Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
G07392821Courtesy of KIA MOTORS AMERICA, INC.

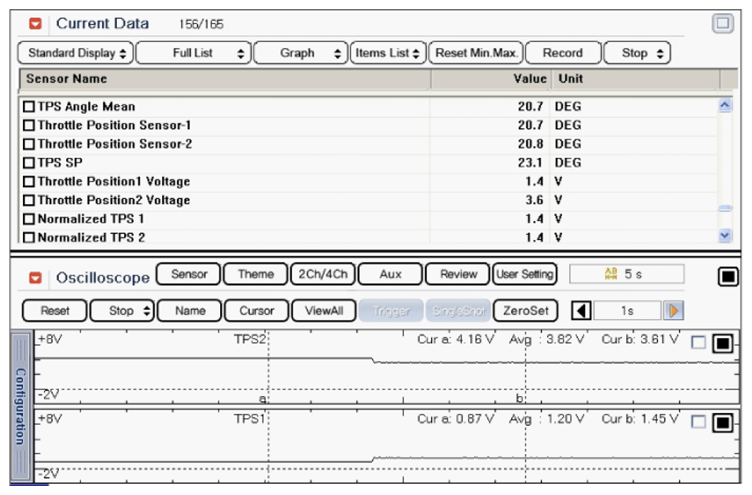

Fig 2: Scantool Display - Normal Data Of TPS1 & TPS2 With Accel Pedal Depressed Under IG ON Condition
G07392822Courtesy of KIA MOTORS AMERICA, INC.

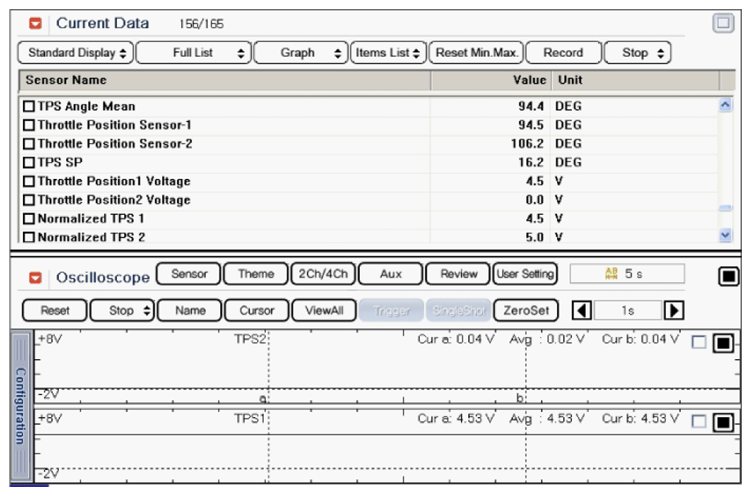

Fig 3: Scantool Display - Normal Data Of TPS1 & TPS2 Under Open Condition
G07392823Courtesy of KIA MOTORS AMERICA, INC.
