Special Service Tools

Tool (Number and Name)

Illustration

Use

09200-38001, 3N000 (Beam)
09200-1P100, 4XD00 (Adapter)
09200-2S200 (Supporter)
Engine support assembly

Removal and installation of the transaxle.
Use assembling 09200-1P100, 4X000 (Adapter) and 09200-2S200 (Supporter) on 09200-38001, 3N000(Beam).

09200-3N000
Engine support fixture (Beam)

Removal and installation of the transaxle.
Use this adapter (SST No.: 09200-1P100, 4X000) with the supporter (SST No.: 09200-2S200).
⁽¹⁾Permit operating with 09200-38001.

09200-1P100
Engine support fixture (Adapter)

Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/09200-3N000) with the supporter (SST No.: 09200-2S200) and adapter (SST No.: 09200-4X000)

09200-4X000
Engine support fixture (Adapter)

Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S200) and adapter (SST No.: 09200-1P100)

09200-2S200
Engine support fixture (Supporter)

Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/09200-3N000) with the adapter (SST No.: 09200-1P100, 4X000)

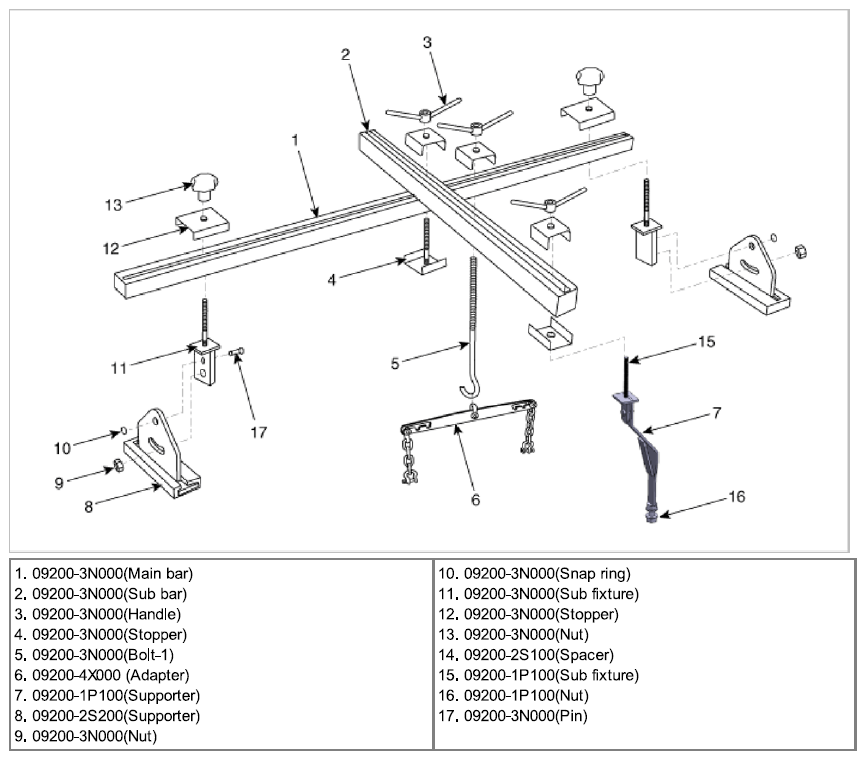

⁽¹⁾	Engine support fixture special tool assembly drawing

Fig 1: Engine Support Fixture Special Tool Assembly Drawing
