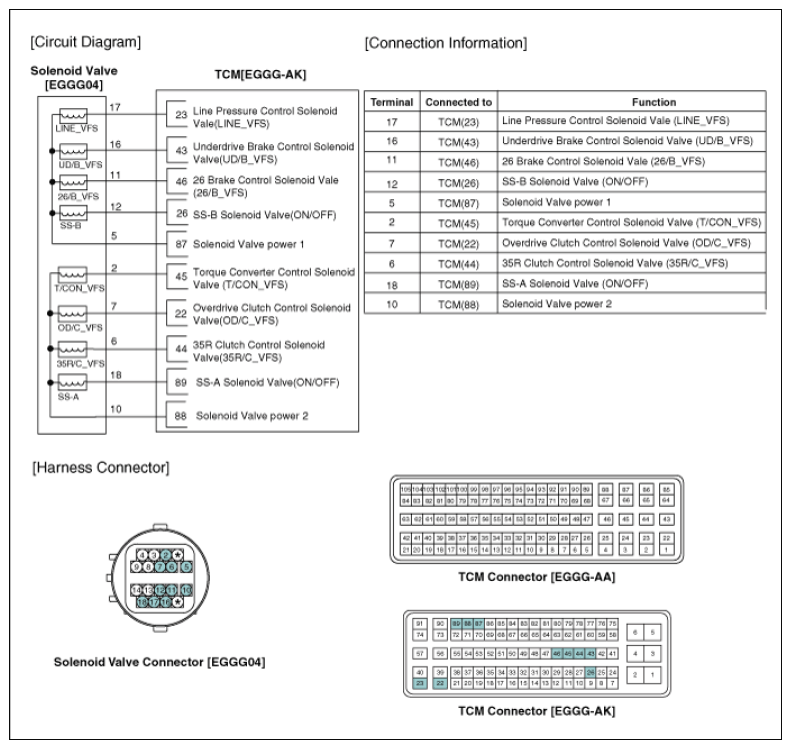

Home >> Kia >> 2012 >> Rio LX, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Underdrive Brake Control Solenoid Valve(UD_B_VFS) >> Schematic Diagrams >> Circuit Diagram
