Monitor GDS Data

Connect GDS to Data Link Connector(DLC).
Ignition "ON" & engine "OFF".
Selet "Current Data" mode and monitor "Inhibitor switch" parameter.
Change a shift lever from P-range to D-range.

Fig 1: Display - Shift Lever Switch And Current Gear Current Data (P Range)
Courtesy of KIA MOTORS AMERICA, INC.

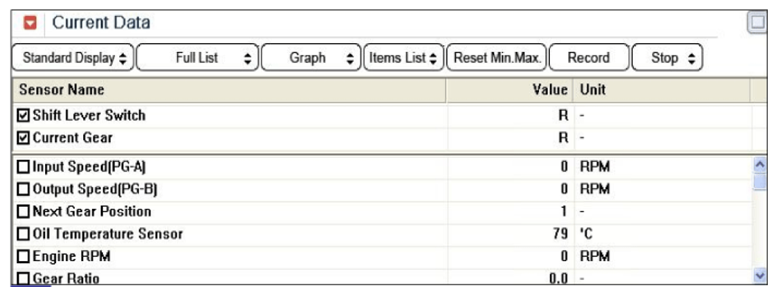

Fig 2: Display - Shift Lever Switch And Current Gear Current Data (R Range)
Courtesy of KIA MOTORS AMERICA, INC.

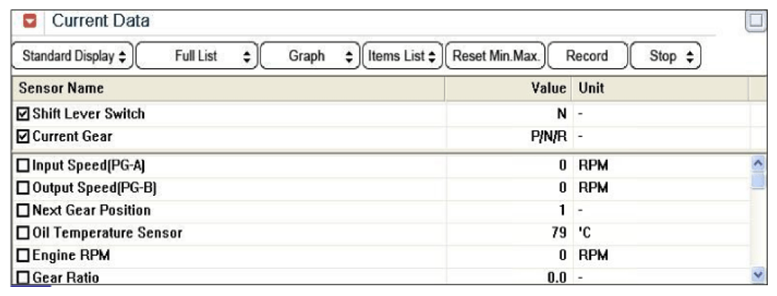

Fig 3: Display - Shift Lever Switch And Current Gear Current Data (N Range)
Courtesy of KIA MOTORS AMERICA, INC.

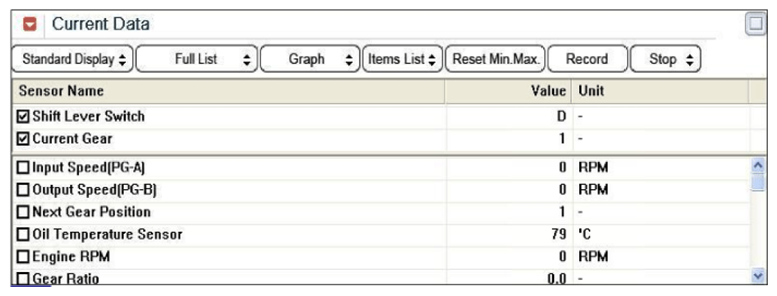

Fig 4: Display - Shift Lever Switch And Current Gear Current Data (D Range)
Courtesy of KIA MOTORS AMERICA, INC.
Is the Inhibitor switch value changed in specification?
YES

Fault is intermittent caused by poor contact of PCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
