Component Inspection

Check Injector

Ignition "OFF".
Disconnect injectors.
Check clog on injectors.

Measure the resistance between power and control terminal of injectors(Component side).

RESISTANCE SPECIFICATION

Coil Resistance(Ω)	Temp.
Approx. 1.25	68(°F)

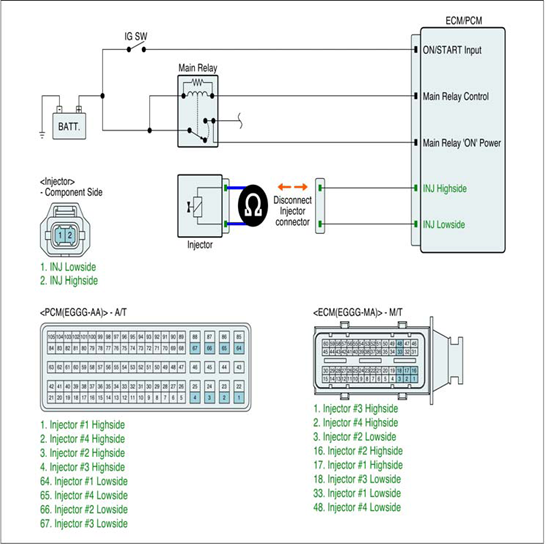

Fig 1: Measuring Resistance Between Injector Power And Control Terminal

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured resistance within specifications?
YES

Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage. So, check poor connections and the related circuit between ECM and component thoroughly. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Substitute with a known - good injector and check for proper operation. If the problem is corrected, replace injector and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
