Engine Control System Diagnosis (1 Of 2)
>>
DTC P0123: Throttle Position Sensor 1 Signal Circuit High Input
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data

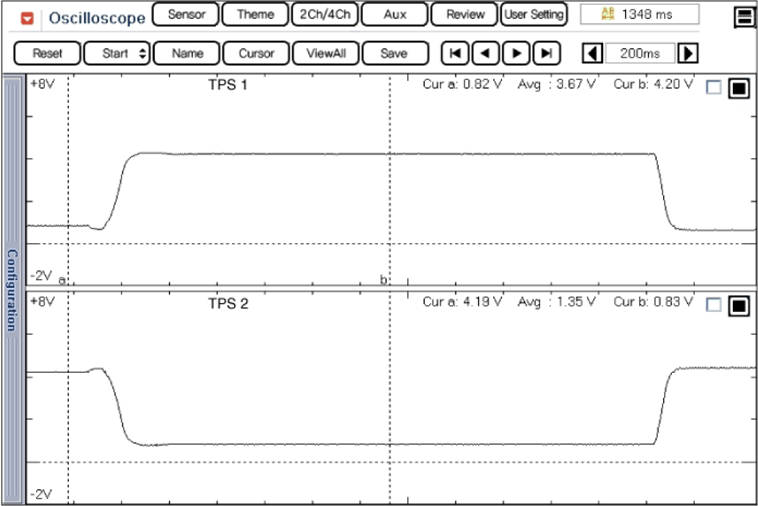

Fig 1: TPS1 & TPS2 Signal Waveform (With No Accel Pedal Depressed Under IG ON Condition)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
