Idle Stop & Go (ISG) System
>>
DC_DC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

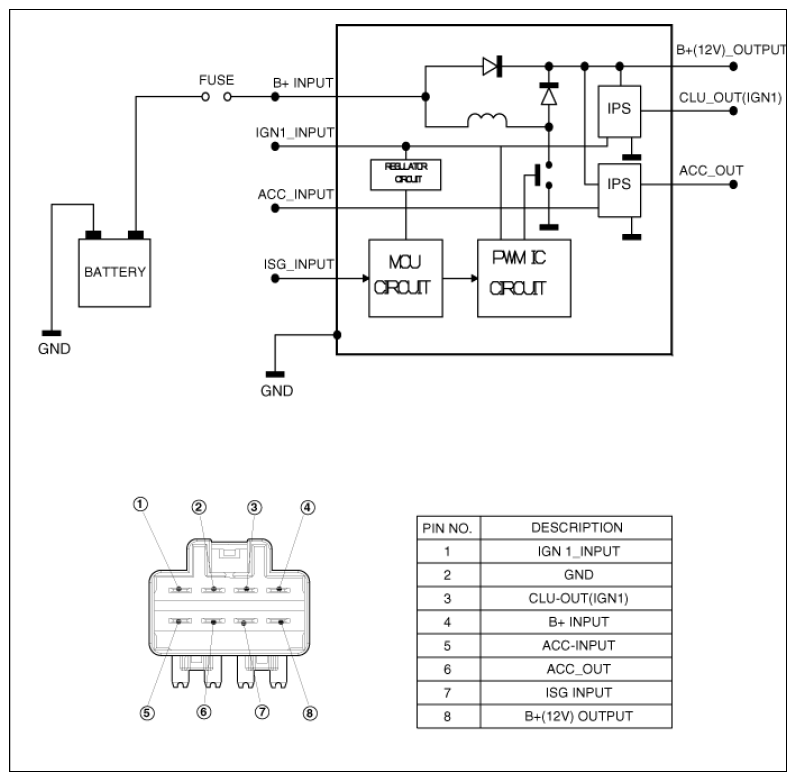

Fig 1: DC/DC Converter - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
In the ISG mode, if the power of an audio system turns OFF by drawdown while "Auto Starting" or "Idle Starting" function operates, replace the DC/DC converter.
