Kia
>>
2012
>>
Rio EX, 4D Hatchback
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Emission Control System - General Information
>>
Components and Components Location
>>
Components Location
Components Location

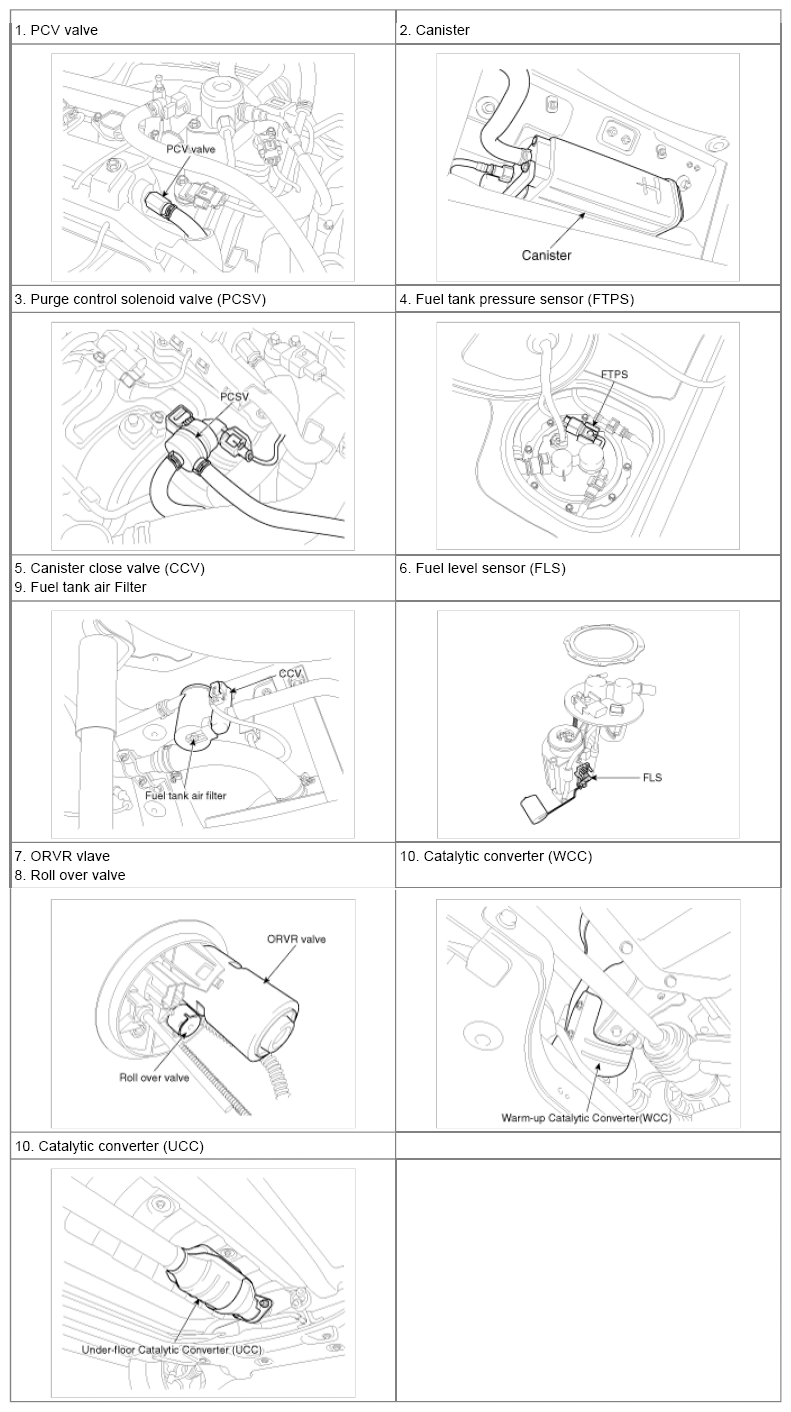

Fig 1: Emission Control System Components Location (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

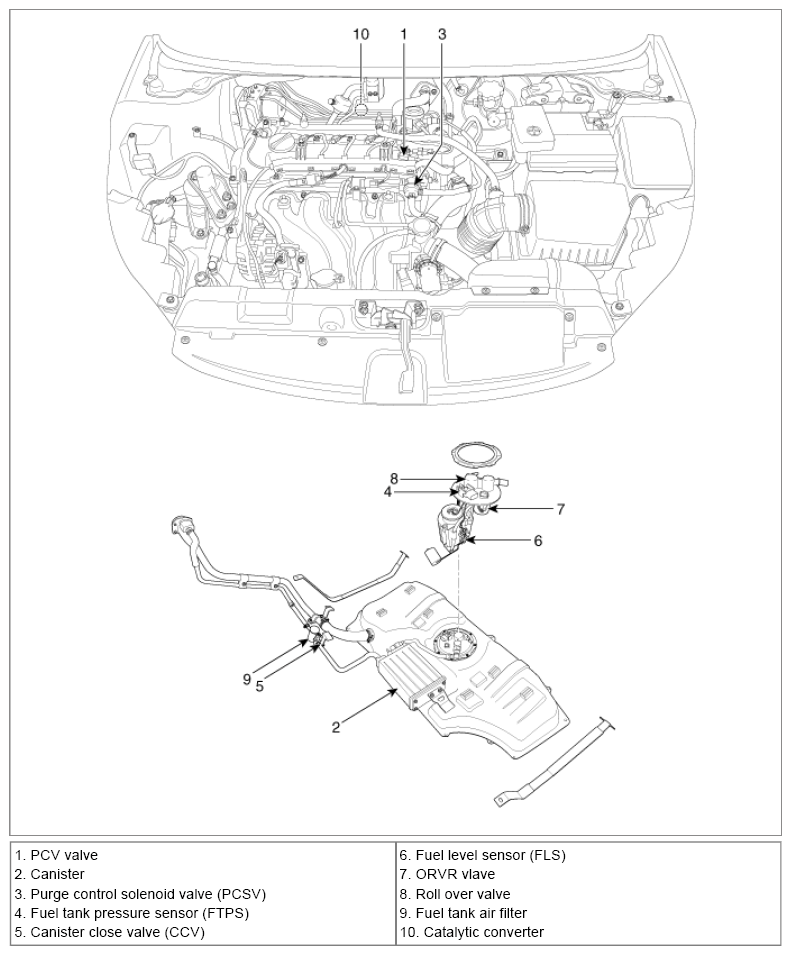

Fig 2: Emission Control System Components Location (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
