CAN Register And Communication Line Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

■ CAN register and communication line inspection 1

  1. IG KEY OFF.
  2. Connect PCM, 4WD ECU, ABS connector.
  3. Measure resistance between terminal 3 and 11 of diagnostic connector.

    Specification:  About 60 Ω

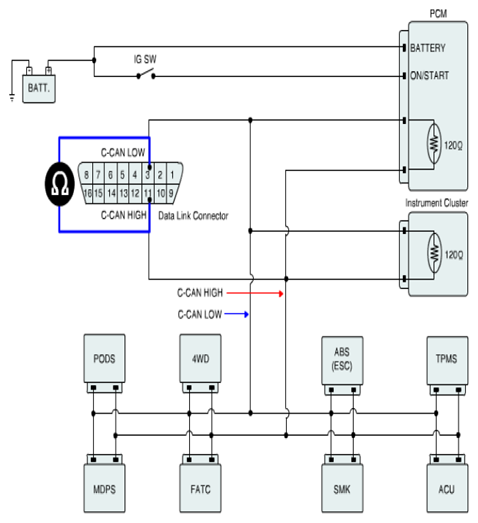

    Fig 1: Measuring Resistance Between Terminal 3 & 11 Of Diagnostic Connector
    G07422933Courtesy of KIA MOTORS AMERICA, INC.

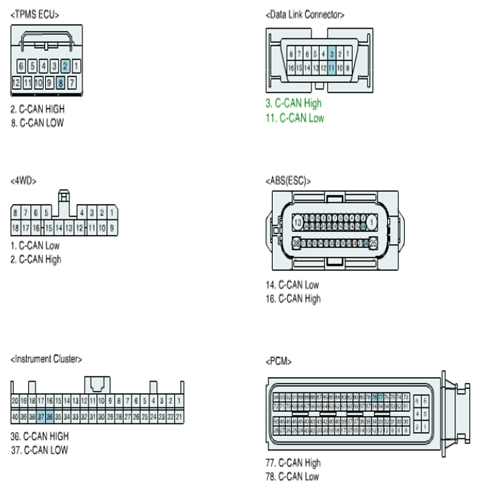

    Fig 2: TPMS, Data Link Connector, ABS & PCM Connector End Views
    G07422934Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the measured resistance within specification?

    YES

    • Check 4WD ECU connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    • Go to next procedure.

    NO

    • If the measured value is out of specification, repair or replace 120 Ω CAN register (Inside of PCM and Cluster) and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    • If the measured value is lower than 10 Ω, repair or replace CAN High and CAN Low are short each other. And then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    • If the measured value is ∞ Ω, repair or replace the open in CAN High/CAN Low circuit. And then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    • Go to next procedure.

■ CAN register and communication line inspection 2

  1. IG KEY OFF
  2. Disconnect PCM connector and Cluster connector.
  3. Measure resistance between terminal CAN Low and CAN High of PCM.

    Specification:  About 120 Ω

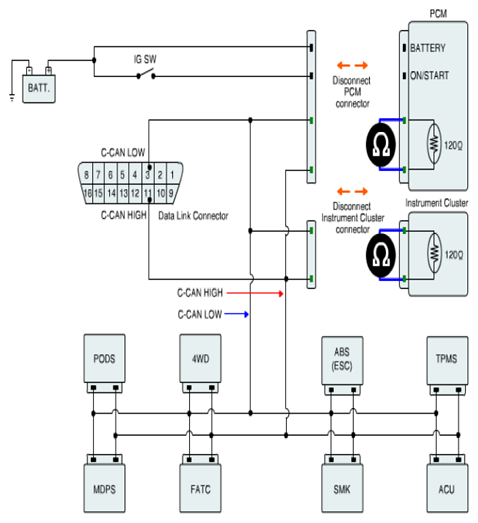

    Fig 3: Measuring Resistance Between Terminal CAN Low & CAN High Of PCM
    G07422935Courtesy of KIA MOTORS AMERICA, INC.

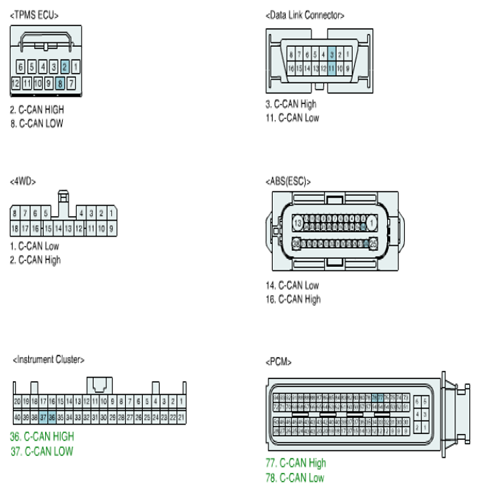

    Fig 4: TPMS, Data Link Connector, ABS & PCM Connector End Views
    G07422936Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the measured value within specification?

    YES

    • Go to next procedure.

    NO

    • If the measured value is out of specification, repair or replace 120 Ω CAN register (Inside of PCM and Cluster) and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    • If the measured value is lower than 10 Ω, repair or replace CAN High and CAN Low are short each other. And then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
    • If the measured value is ∞ Ω, repair or replace the open in CAN High/CAN Low circuit. And then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
