Component Inspection: Notes

■ Output speed sensor waveform Inspection

1. Connect "A/T solenoid valve" connector and GDS to Data Link Connector (DLC).
2. Engine ON and operate Input speed sensor.
3. Measure waveform between signal of Output speed sensor harness and chassis ground.

   Specification :  See SIGNAL WAVEFORM & DATA .

   For 2012

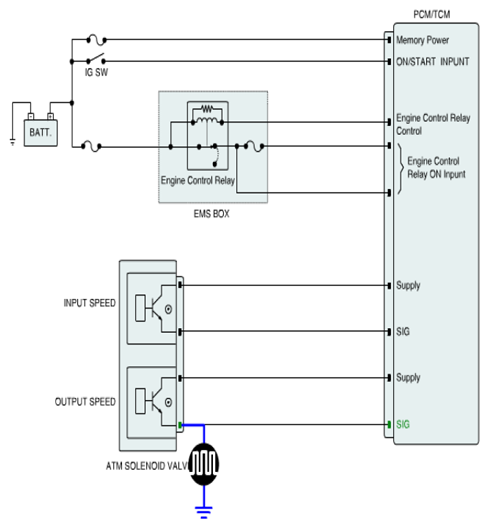

   Fig 1: Measuring Waveform Between Signal Of Output Speed Sensor Harness & Chassis Ground

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: ATM Solenoid Valve Connector Terminal Identification

   Courtesy of KIA MOTORS AMERICA, INC.

   For 2013 refer to ETM

4. Is the measured waveform within specifications?

   YES

   • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR  procedure.

   NO

   • Go to PCM/TCM Inspection .
