Components And Components Location: Components: REMY

WARNING: This page is about a different variant/trim than selected.

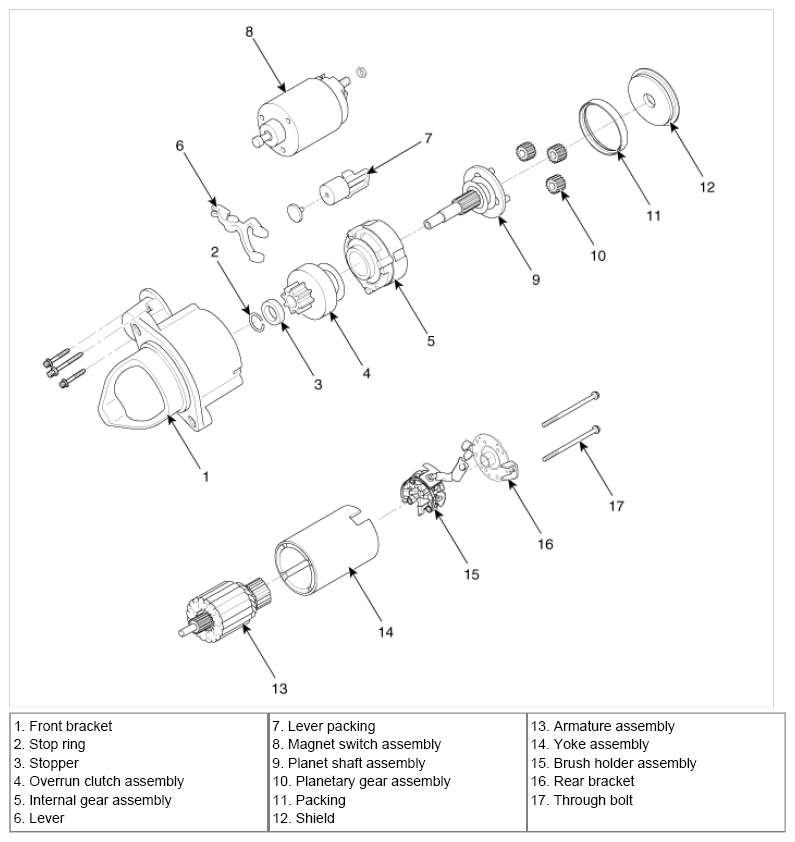

Fig 1: Exploded View Of Starter (REMY)

G07385708

Courtesy of KIA MOTORS AMERICA, INC.
