Section 58 (HEV Control System Diagnosis - HEV)
>>
DTC U0129: Lost Communication With Brake System Control Module
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

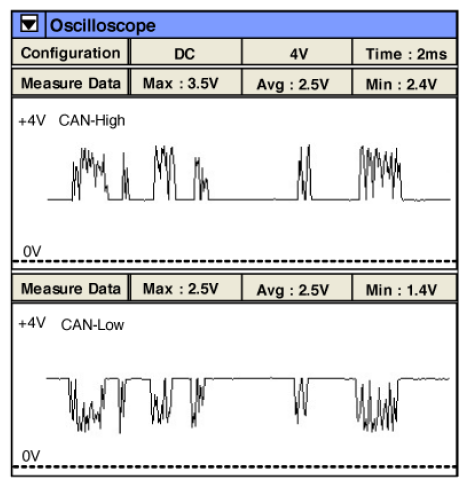

Fig 1: Display - CAN High And Low Output Voltage Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
