Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

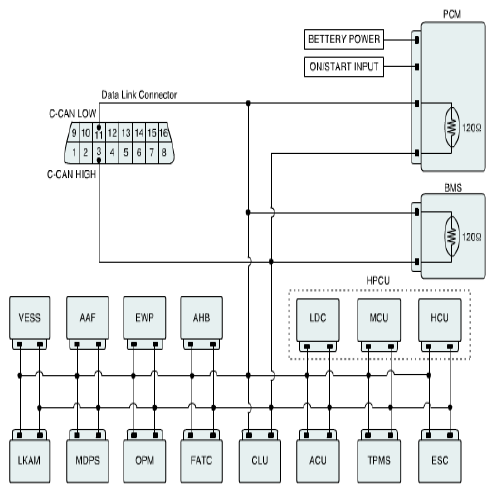

Fig 1: HPCU - Circuit Diagram
G08310513Courtesy of KIA MOTORS AMERICA, INC.

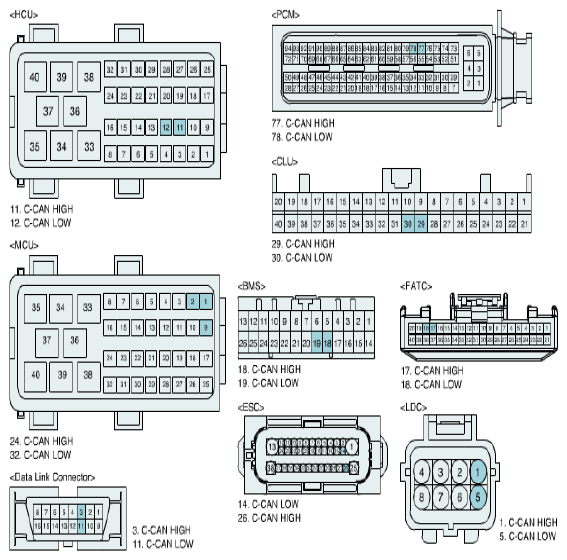

Fig 2: HPCU Connector Terminals End View
G08310514Courtesy of KIA MOTORS AMERICA, INC.
