W/Harness Inspection: Notes

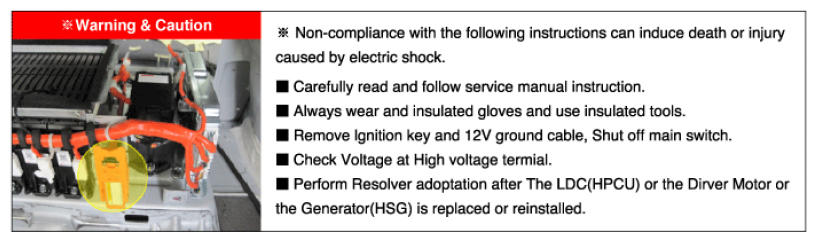

Fig 1: Caution For Inspecting LDC(HPCU) Or Generator (HSG)
G08306387Courtesy of KIA MOTORS AMERICA, INC.
  1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Has a problem been found?

    YES

    NO
