Power Circuit Inspection

  1. Ignition "ON" & Engine "OFF".
  2. Measure voltage between power terminal of the oil control valve harness connector and chassis ground.

    Specification  : Approx. B+

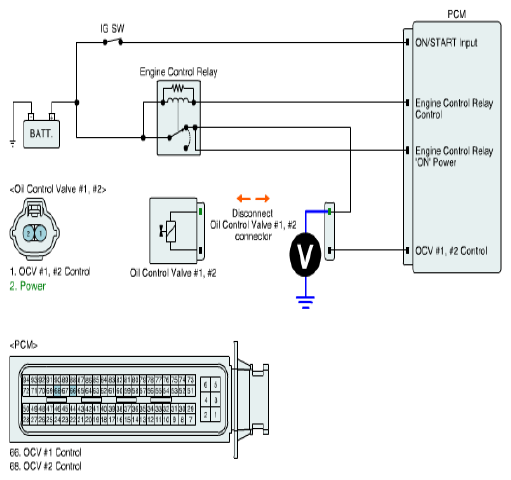

    Fig 1: Measuring Voltage Between Oil Control Valve Harness Connector Power Terminal And Chassis Ground
    G08305752Courtesy of KIA MOTORS AMERICA, INC.
  3. Is voltage within specification?
