Home >> Kia >> 2012 >> Forte LX, Standard Trans >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle System - 2.0L >> Manual Transaxle >> Components and Components Location >> Components

Components and Components Location: Components

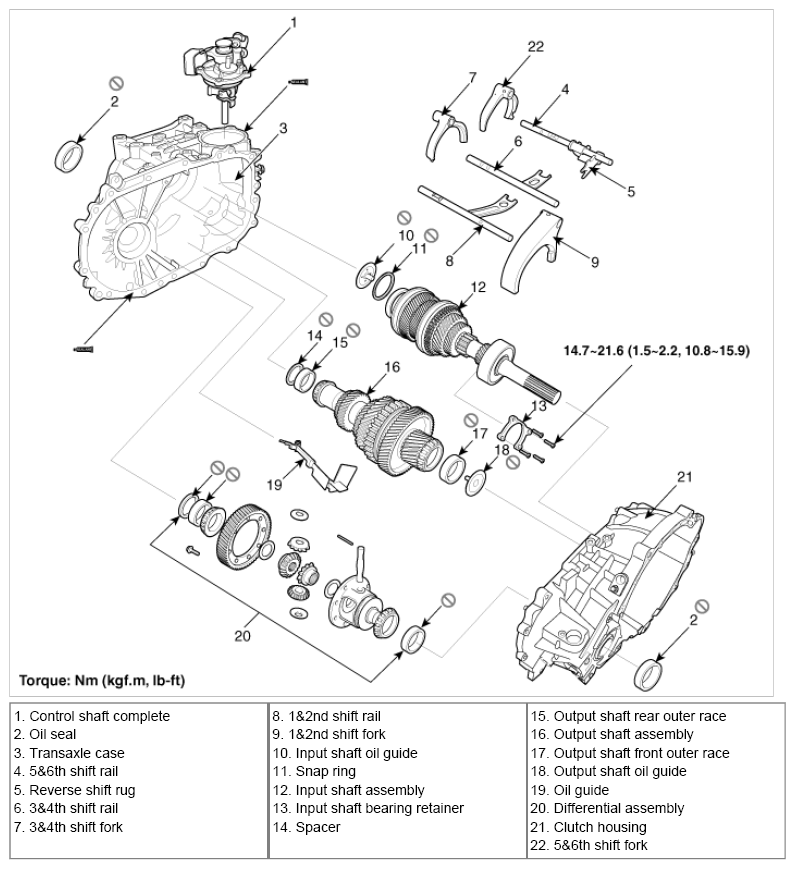

Fig 1: Exploded View Of Manual Transaxle With Torque Specifications

G07367905

Courtesy of KIA MOTORS AMERICA, INC.
