Battery Diagnostic Flow
Battery Diagnostic Flow

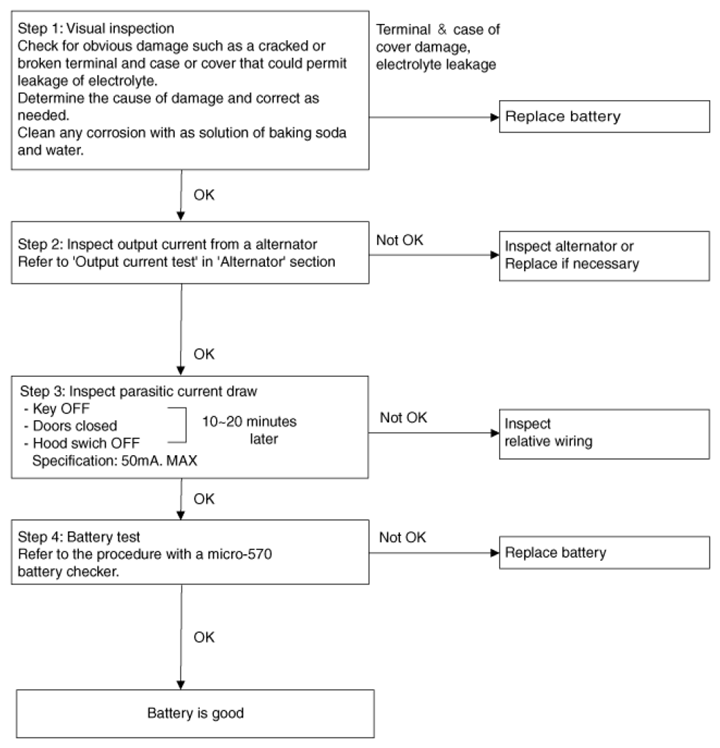

Fig 1: Battery Diagnostic Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
