Circuit Diagram

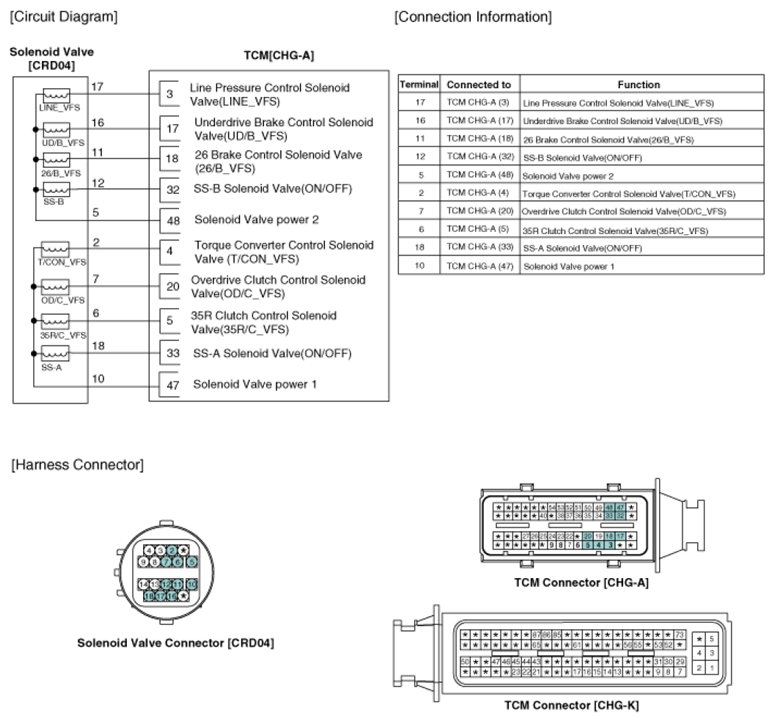

Fig 1: SS-A Solenoid Valve Circuit Diagram & Connector Terminal Identification

G07368030

Courtesy of KIA MOTORS AMERICA, INC.
