Repair procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module mounting bolts (2 EA).

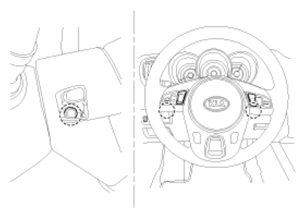

    Fig 1: Locating Driver Airbag Module Mounting Bolt
    G07368326Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the wiring fixing clip (A) and disconnect airbag module connector (B).
    Fig 2: Wiring Fixing Clip & Airbag Module Connector
    G07368327Courtesy of KIA MOTORS AMERICA, INC.
  4. Separate the airbag module from the steering wheel.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
  5. Remove the steering wheel and steering column shroud. Refer to STEERING COLUMN AND SHAFT .
  6. Disconnect the clock spring and horn connector, then remove the clock spring.
Fig 3: Clock Spring & Horn Connectors
G07368328Courtesy of KIA MOTORS AMERICA, INC.
