Repair procedures: Replacement

Disconnect the negative (-) battery terminal.
Remove the crash pad side cover (A).

Fig 1: Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.

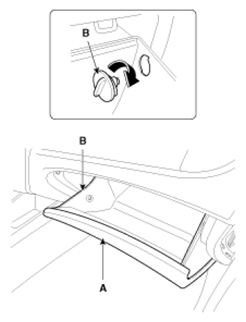

Disconnect the damper (B) from the glove box (A).

Fig 2: Disconnecting Damper From Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
After disconnecting the mounting pin (A), then remove the glove box (B).

Fig 3: Glove Box & Mounting Pin
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screw, then remove the glove box housing (A)

Fig 4: Glove Box Housing Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shower duct (A).

Fig 5: Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.

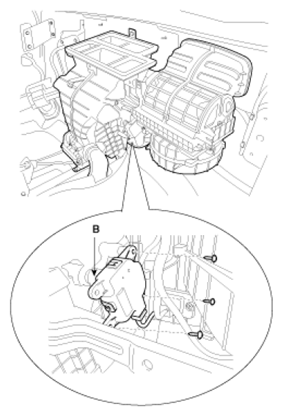

Loosen the mounting screw and then remove the temperature control actuator (B).

Fig 6: Temperature Control Actuator
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse order of removal.
