Components and Components Location: Component

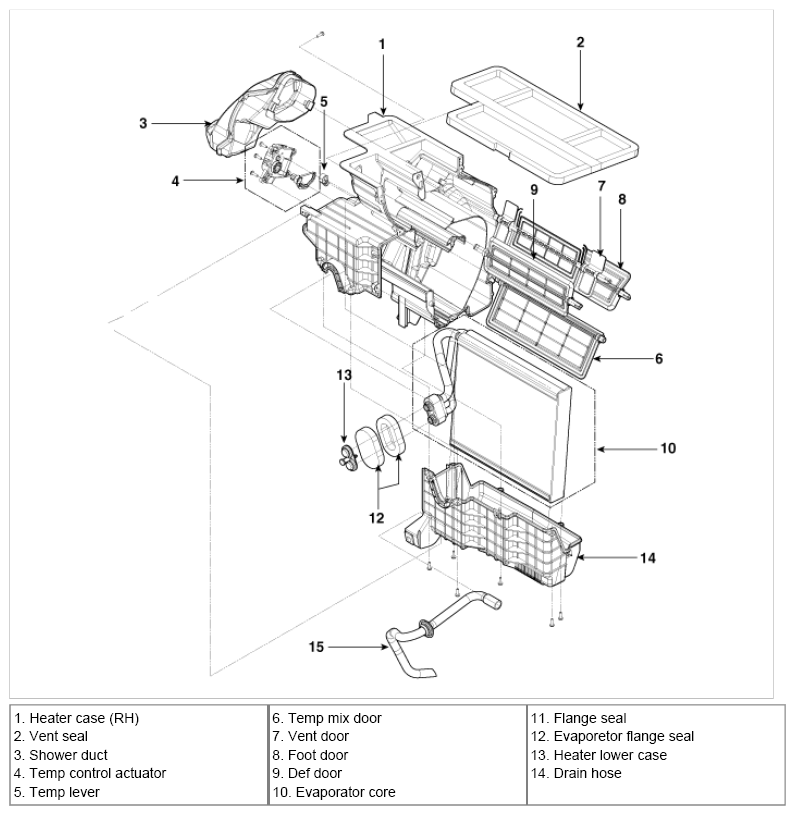

Fig 1: Exploded View Of Heater Unit Components (1 Of 2)
G07369604Courtesy of KIA MOTORS AMERICA, INC.

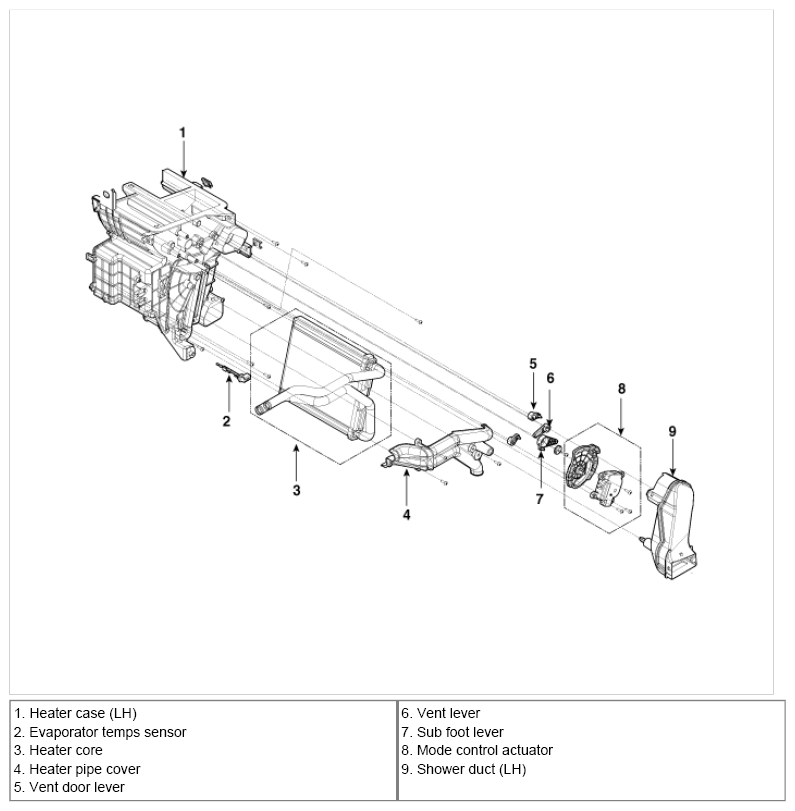

Fig 2: Exploded View Of Heater Unit Components (2 Of 2)
G07369605Courtesy of KIA MOTORS AMERICA, INC.
