Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning System >> Photo Sensor >> Repair procedures >> Inspection

Repair procedures: Inspection

  1. Ignition "ON"
  2. Using the scan tool.
  3. Emit intensive light toward photo sensor using a lamp, and check the output voltage change.
  4. The voltage will rise with higher intensive light and reduce with lower intensive light.

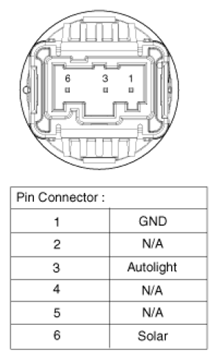

    Fig 1: Photo Sensor Connector Terminal Identification
    G07369599Courtesy of KIA MOTORS AMERICA, INC.
