Engine Room

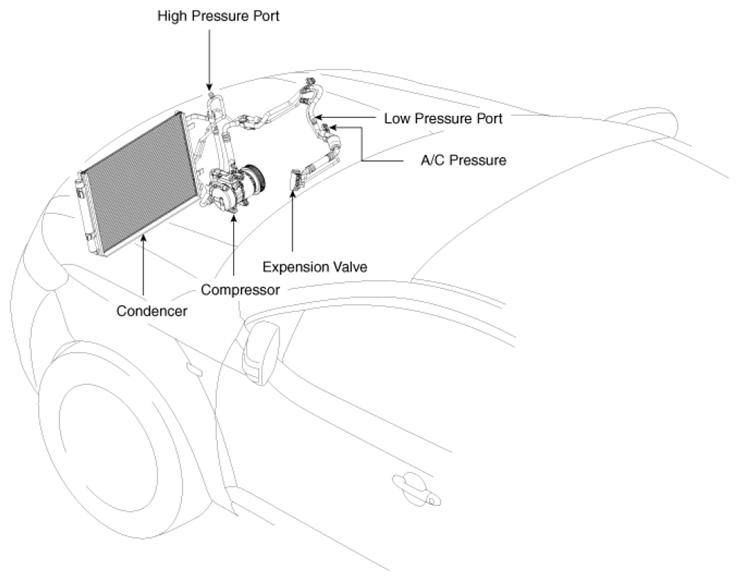

Fig 1: Air Conditioning System Component Location (Engine Room)

G07369573

Courtesy of KIA MOTORS AMERICA, INC.
