Schematic Diagram

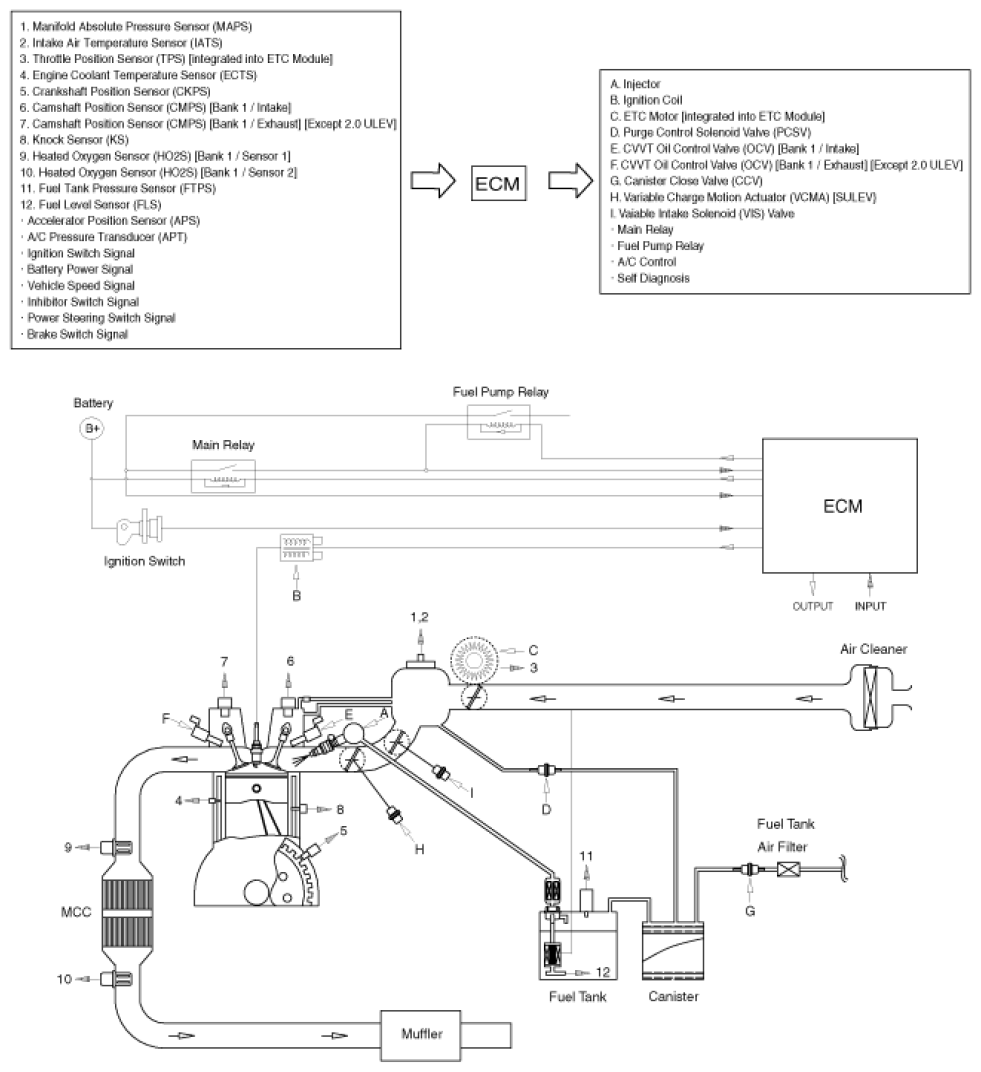

Fig 1: Emission Control System Schematic Diagram

G07367740

Courtesy of KIA MOTORS AMERICA, INC.
