Teaching MODE Procedure Description (Step By Step)

Objective: Key teaching procedure at service station

Initial state:

• SMK replacement: SMK is not learnt, PDM and ESCL and SMART FOB are already learnt with same PIN code
• PDM replacement: PDM is not learnt, SMK and ESCL and SMART FOB are already learnt with same PIN code
• ESCL replacement: ESCL is not learnt, SMK and PDM and SMART FOB are already learnt with same PIN code
• Additional or new keys teaching: SMK and PDM and ESCL are already learnt with same PIN code

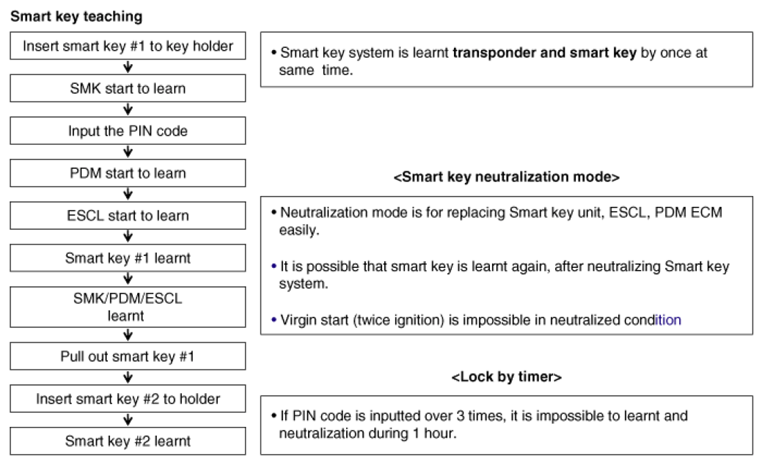

  Fig 1: Smart Key Teaching Procedure Flow Chart

  Courtesy of KIA MOTORS AMERICA, INC.
