Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad (Refer to CRASH PAD ).
  3. Disconnect the intake actuator connector.
  4. Loosen the mounting screws and then remove the intake actuator (B) from the blower unit.

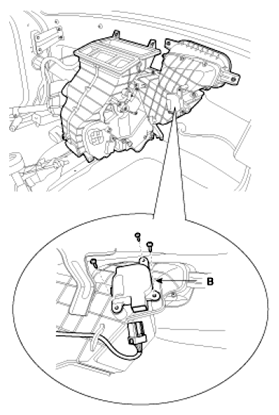

    Fig 1: Identifying Intake Actuator & Mounting Screws
    G06525818Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
