Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel. (refer to CRASH PAD )
  3. Disconnect the connector and then remove the blower resistor (A).

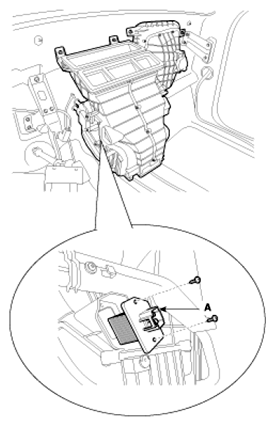

    Fig 1: Identifying Blower Resistor
    G06525812Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
