Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad (refer to CRASH PAD )
  3. Disconnect the connector (A) of the blower motor.
  4. Remove the blower motor (B) after loosening the mounting screws.

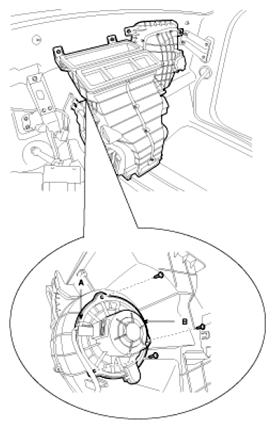

    Fig 1: Identifying Blower Motor, Connector, & Mounting Screws
    G06525810Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
