Circuit Diagram
Circuit Diagram

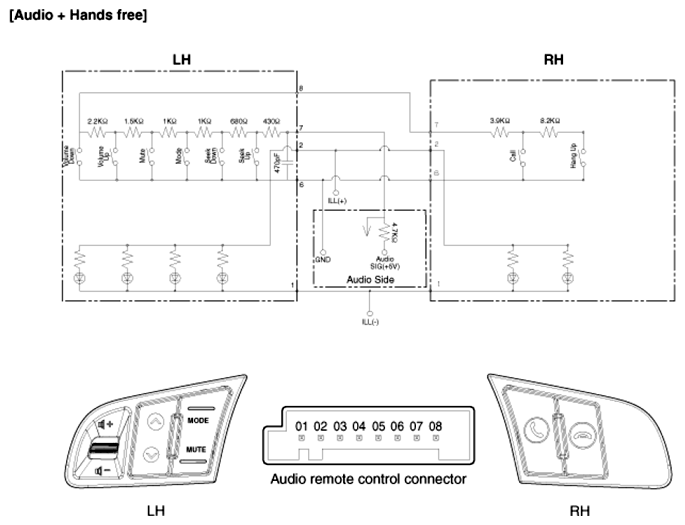

Fig 1: Audio Remote Control Circuit Diagram - Audio + Hands Free
Courtesy of KIA MOTORS AMERICA, INC.

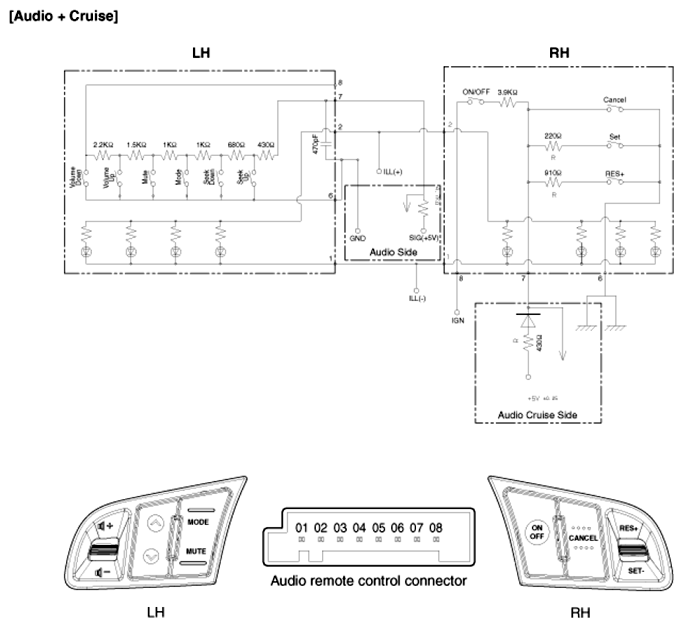

Fig 2: Audio Remote Control Circuit Diagram - Audio + Cruise
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
