Monitor Scantool Data

  1. Check status.
    1. Ignition "ON" & Engine "OFF"
    2. Monitor the "ECM, Key and SMARTRA Status" parameters on the scantool.

      Specification:  'LEARNT'

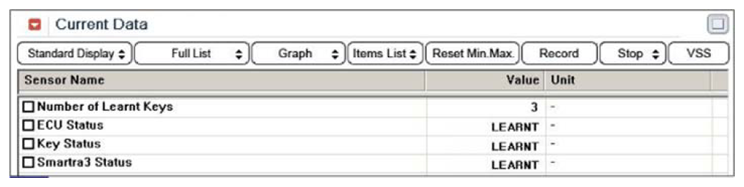

      Fig 1: Monitoring ECM, Key, & SMARTRA Status Parameters On Scantool
      G06520562Courtesy of KIA MOTORS AMERICA, INC.

      The data above shows that 3 keys have been taught, ECU has been learnt, Key in key cylinder has been learnt and SMARTRA3 has been learnt.

    3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage on the ECM or SMARTRA. Also, check that this DTC has not erased in a previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
