Component Location Index

WARNING: This page is about a different car, the 2011 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Engine Room

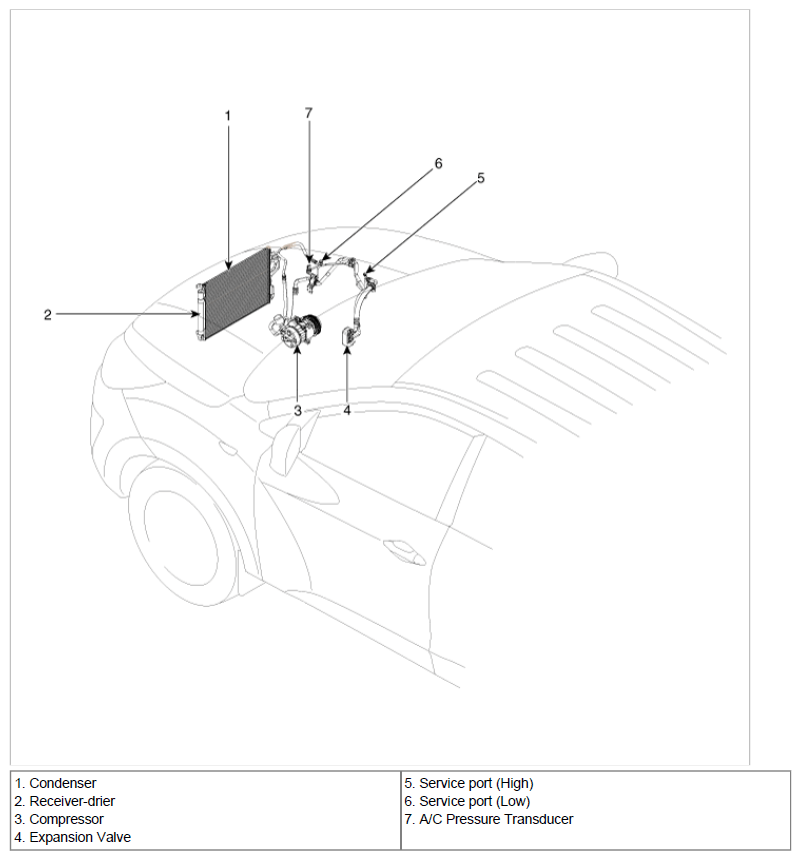

Fig 1: Identifying Air Conditioning System Component Location (Engine Room)
G06873875Courtesy of HYUNDAI MOTOR CO.
