Circuit Diagram

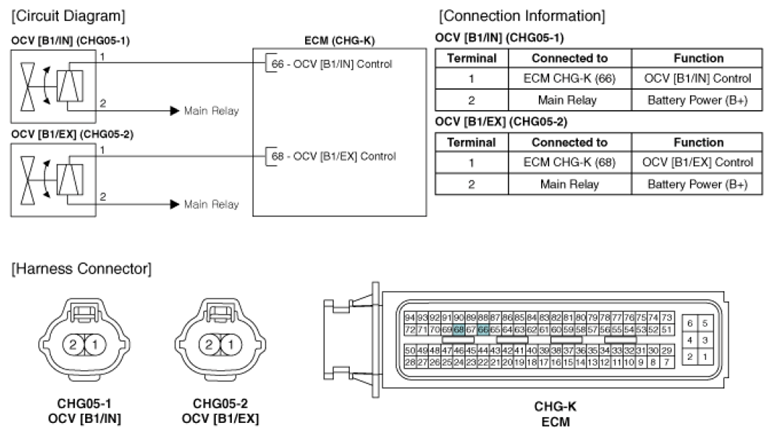

Fig 1: CVVT Oil Control Valve Circuit Diagram

G07415547

Courtesy of KIA MOTORS AMERICA, INC.
