Home >> Kia >> 2011 >> Sorento Base, Standard >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.4L >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

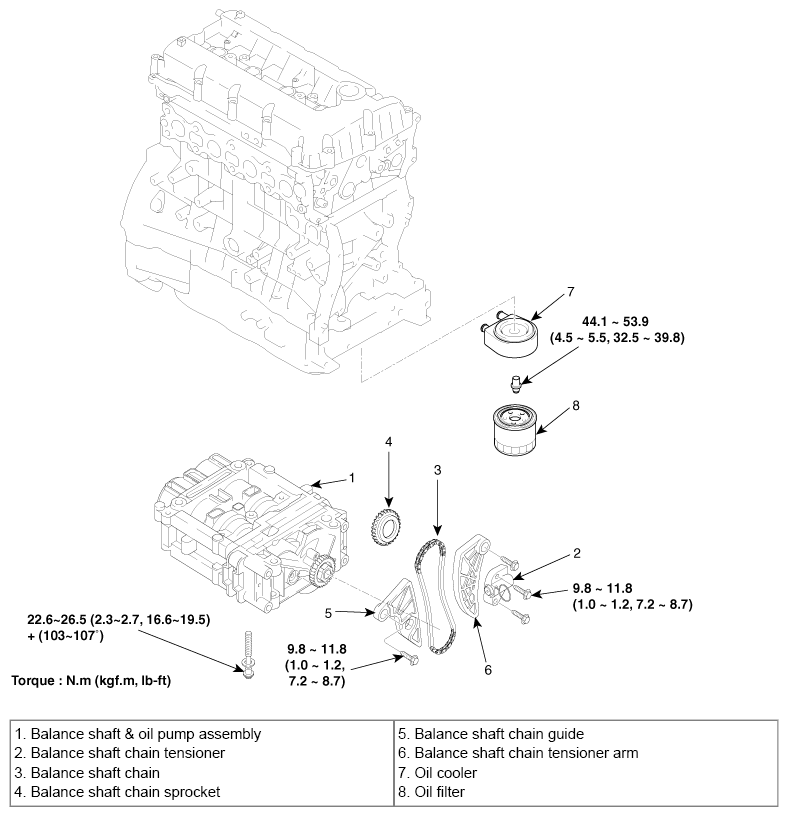

Fig 1: Exploded View Of Oil Pump With Torque Specifications

G07418757

Courtesy of KIA MOTORS AMERICA, INC.
