Circuit Diagram (1)

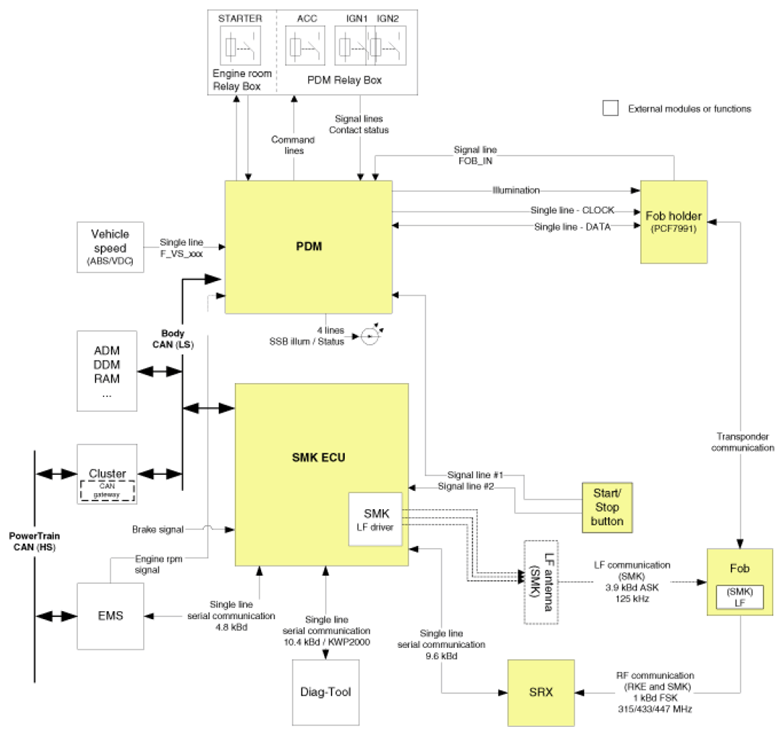

Fig 1: Button Engine Start System Circuit Diagram

G07416427

Courtesy of KIA MOTORS AMERICA, INC.
