Circuit Diagram

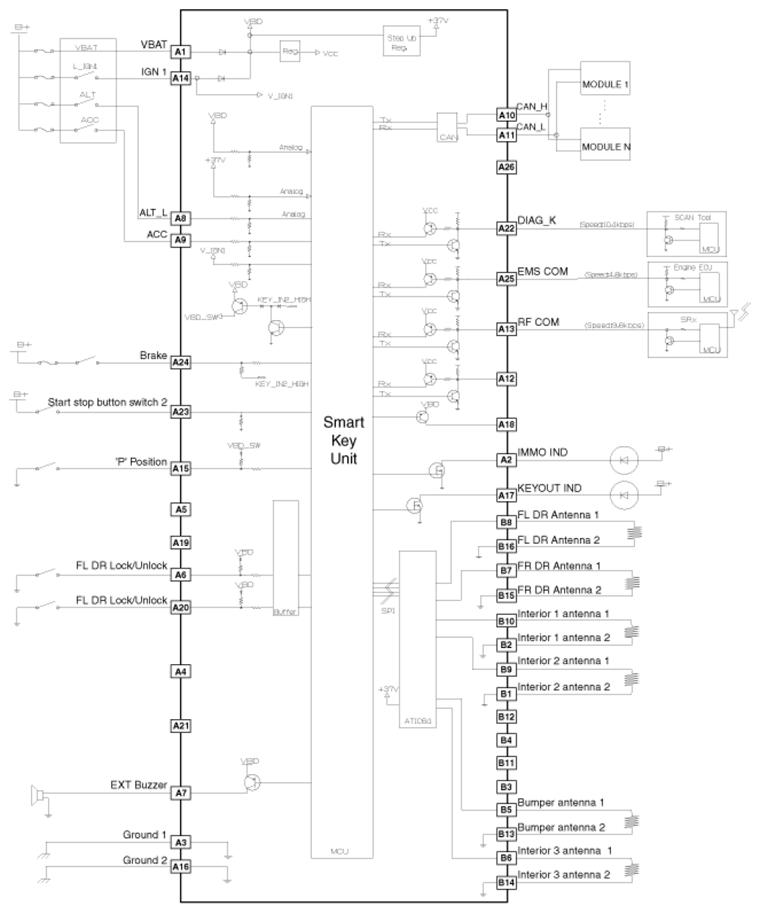

Fig 1: Smart Key Unit Circuit Diagram

G07415753

Courtesy of KIA MOTORS AMERICA, INC.
