Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "CODE SAVING"

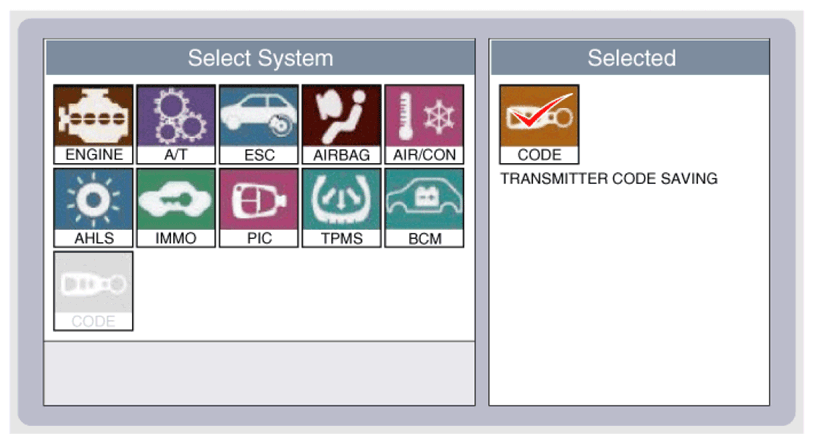

Fig 2: Scantool Display - CODE SAVING
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

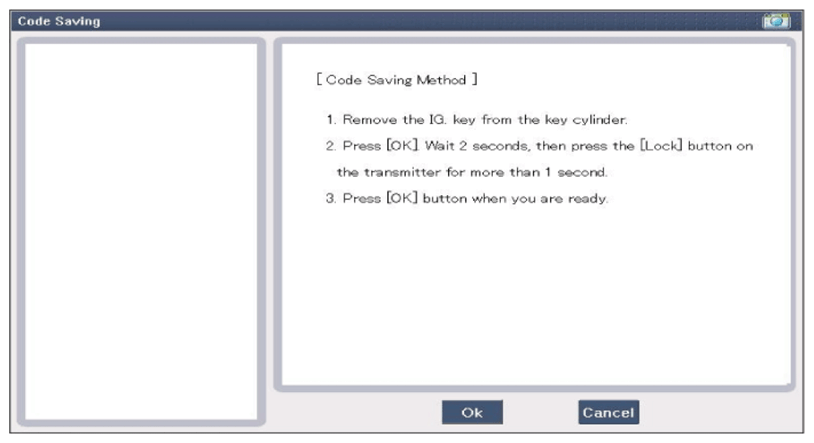

Fig 3: Scantool Display - Code Saving Method
Courtesy of KIA MOTORS AMERICA, INC.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. steps 1 to 4 and then code saving is completed.

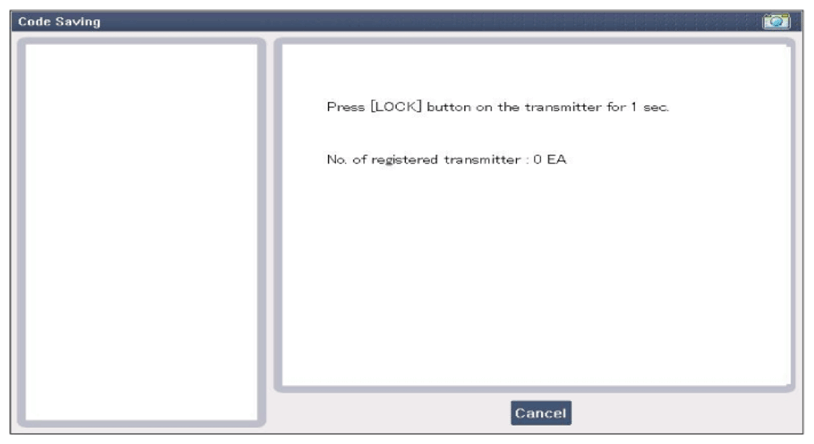

Fig 4: Scantool Display - CODE SAVING
Courtesy of KIA MOTORS AMERICA, INC.

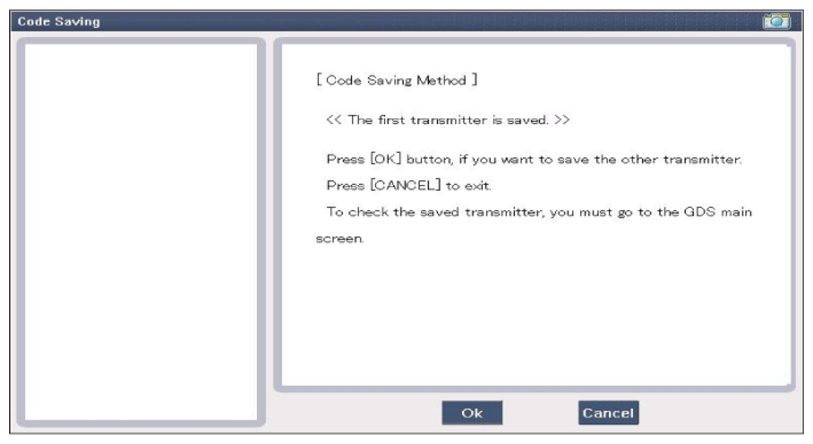

Fig 5: Scantool Display - Code Saving Method (1st Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

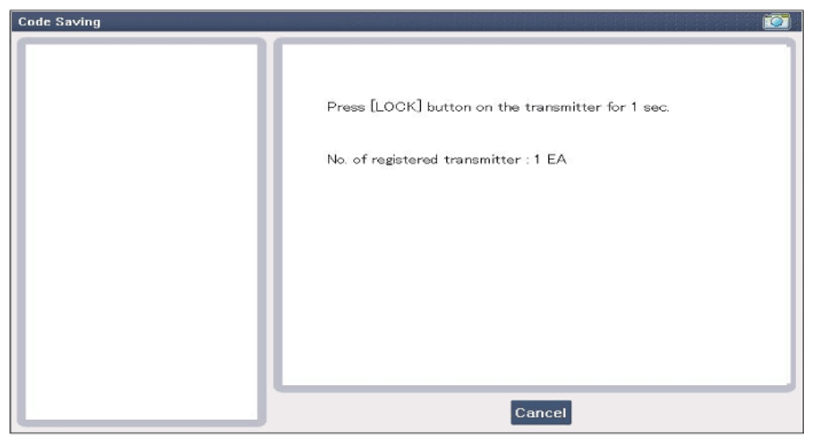

Fig 6: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

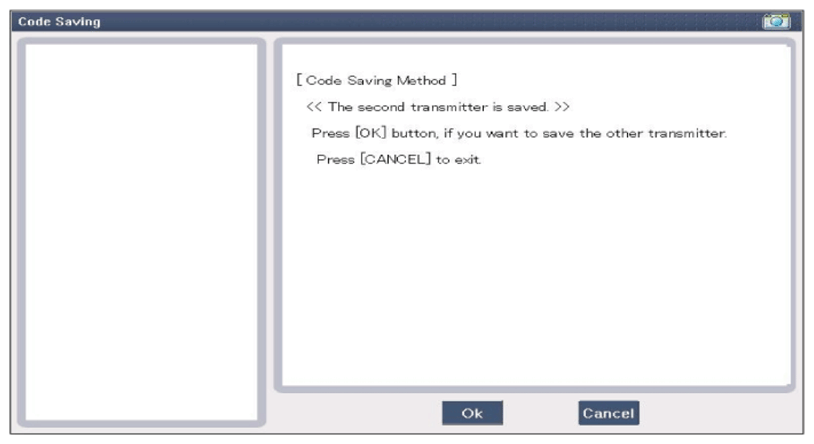

Fig 7: Scantool Display - Code Saving Method (2nd Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

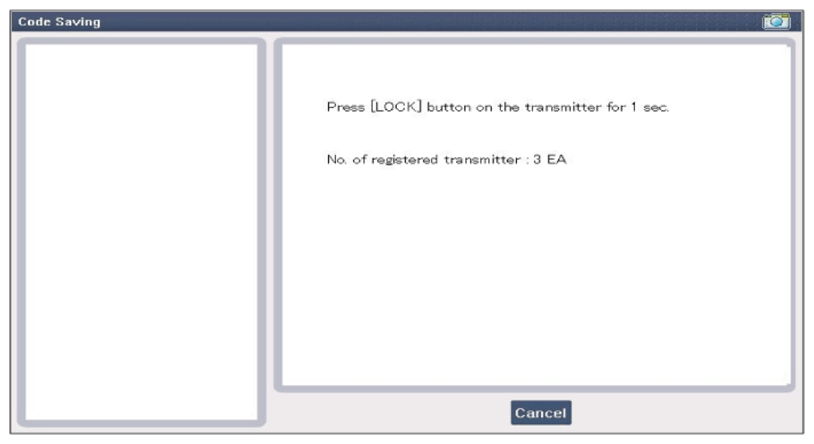

Fig 8: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Scantool Display - Code Saving Method (3rd Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

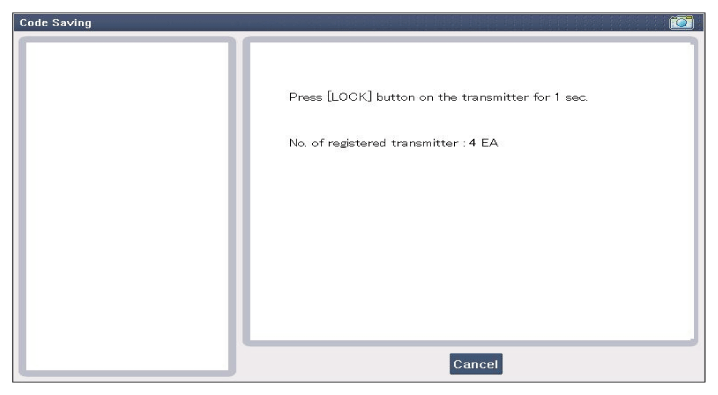

Fig 10: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

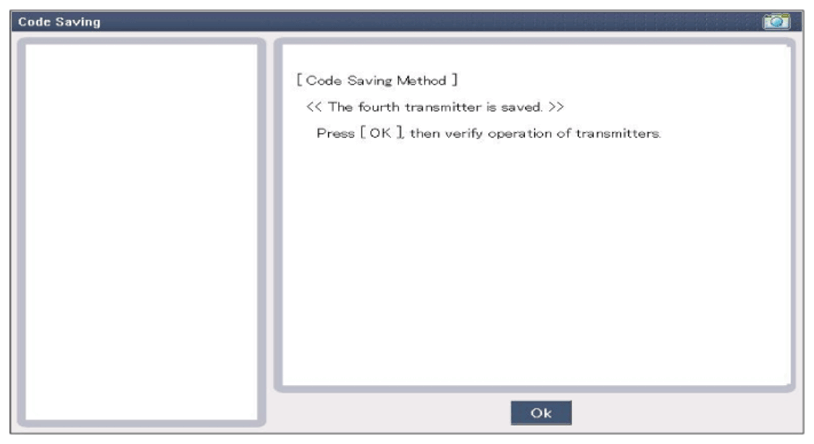

Fig 11: Scantool Display - Code Saving Method (4th Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Scantool Display - Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
