Signal Waveform

WARNING: This page is about a different variant/trim than selected.

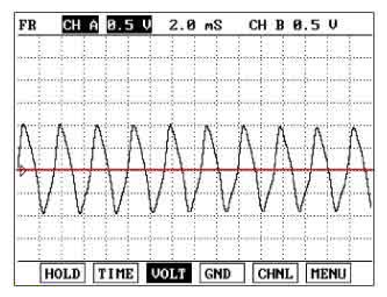

Fig 1: Signal Waveform Of AT Input Speed Sensor
G06831426Courtesy of KIA MOTORS AMERICA, INC.

Connect RED lead wire to PULSE GENERATOR A SIGNAL(+), Black lead wire to PULSE GENERATOR A SIGNAL(-), and measure.
