Home >> Kia >> 2011 >> Rio Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC P0505: Idle Air Control System >> General Information >> Schematic Diagram

Schematic Diagram

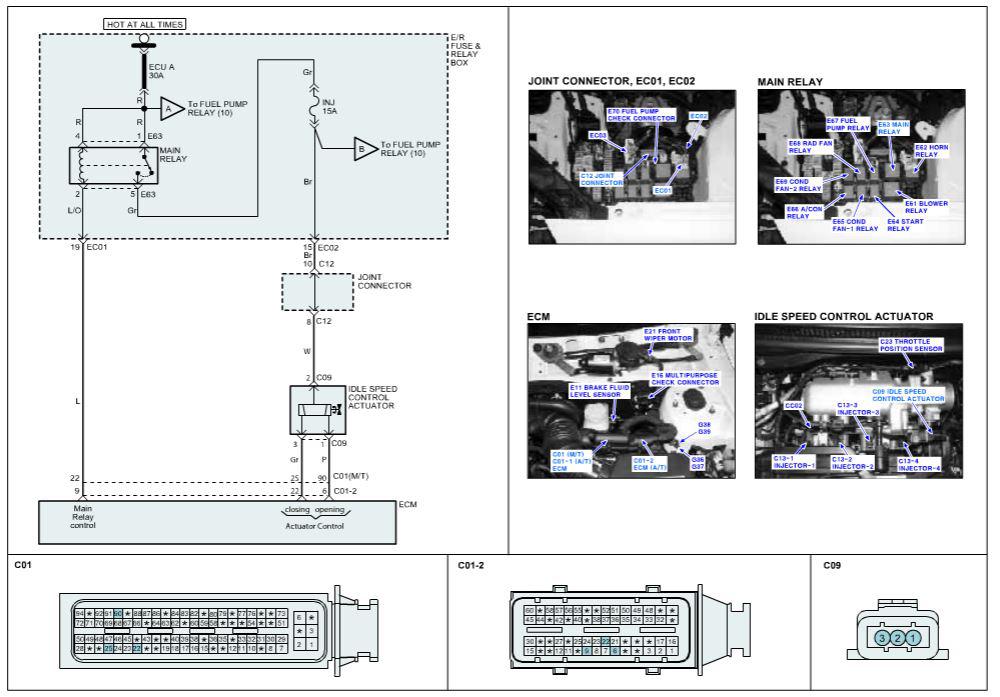

Fig 1: ISCA (Idle Speed Control Actuator) - Schematic Diagram

G06830967

Courtesy of KIA MOTORS AMERICA, INC.
