Control Circuit Inspection

  1. IG "OFF".
  2. Disconnect fuel pump relay and PCM/ECM harness connector.
  3. IG "ON".
  4. Measure the resistance between terminal 5 of A/C relay harness connector and terminal 35/C01-2 of PCM harness connector. (AT)
  5. Measure the resistance between terminal 5 of A/C relay harness connector and terminal 49/C01 of ECM harness connector. (MT)
    1. Specification : below 1Ω

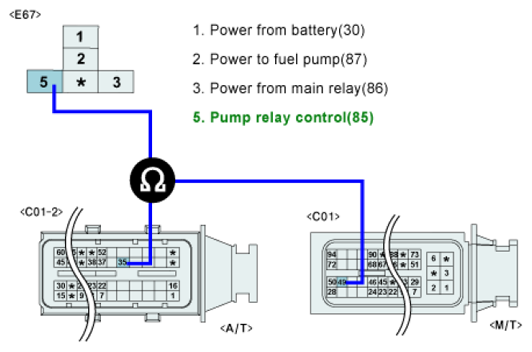

      Fig 1: Measuring Resistance Between Terminal 5 Of A/C Relay Harness Connector And Terminal 49/C01 Of ECM Harness Connector
      G06830646Courtesy of KIA MOTORS AMERICA, INC.
  6. Is the measured resistance within specification?

    YES

    1. Go to "COMPONENT INSPECTION " procedure.

    NO

    1. Repair Open in fuel pump control circuit and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
