Schematic Diagram

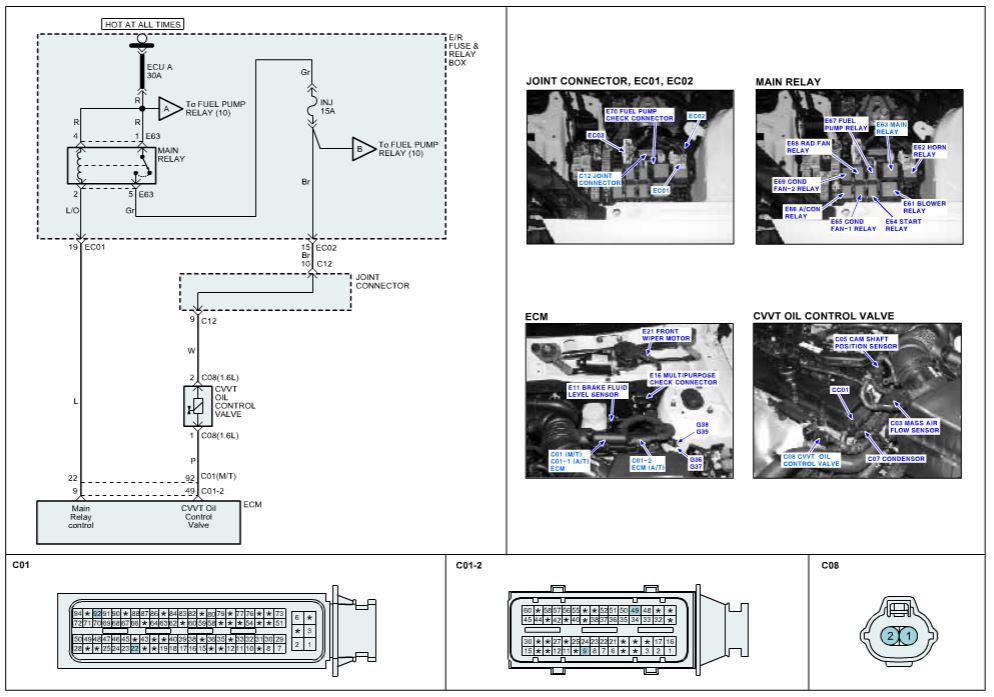

Fig 1: CVVT (Continuously Variable Valve Timing) - Schematic Diagram

G06830398

Courtesy of KIA MOTORS AMERICA, INC.
