Monitor Scantool Data

  1. Engine "ON".
  2. Connect scantool to Data Link Connector (DLC).
  3. Start and drive vehicle in gear and maintain vehicle speed is approx. 10km/h or more (6mph or more)
  4. Monitor the "FL WSS" parameter on the Scantool.

    Specification :  Approx. 10km/h or more (6mph or more)

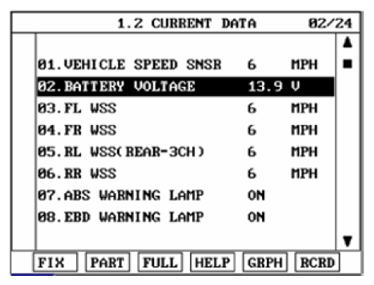

    Fig 1: Monitoring FL WSS Parameter On Scantool - Drive Vehicle In 10km/h Or More (6mph Or More)
    G06830239Courtesy of KIA MOTORS AMERICA, INC.

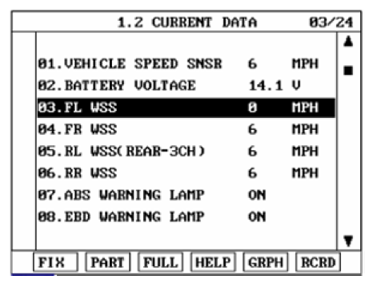

    Fig 2: Monitoring FL WSS Parameter On Scantool - Drive Vehicle In 10km/h Or More (6mph Or More)
    G06830240Courtesy of KIA MOTORS AMERICA, INC.

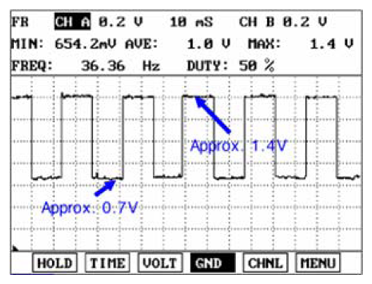

    Fig 3: Signal Waveform Of Wheel Speed Sensor (Active Type)
    G06830241Courtesy of KIA MOTORS AMERICA, INC.
  5. Is parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor connection in wheel speed sensor harness (FL) and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
