BMS Control Module Connector End View (F71)

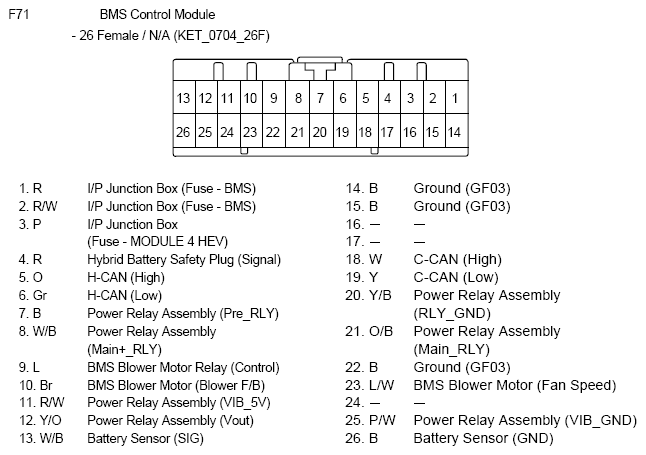

Fig 1: BMS Control Module Connector End View (F71)

G10797129

Courtesy of KIA MOTORS AMERICA, INC.
