Component Inspection

■ LIN communication line waveform check

1. IG "OFF".
2. Connect probe to battery sensor to check signal waveform by using oscilloscope function.
3. IG "ON" and monitor signal waveform.

   Specification :  Signal waveform will be displayed as Signal Waveform & Data

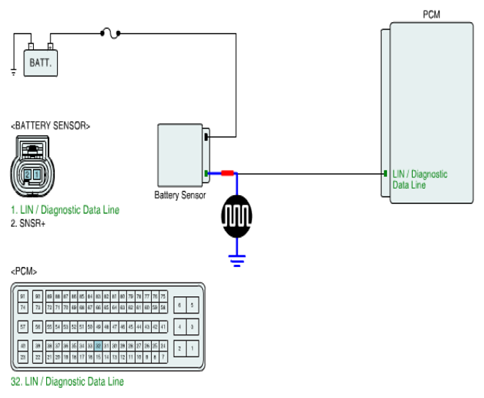

   Fig 1: Checking Signal Waveform Of Battery Sensor

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured signal waveform O.K?

   YES

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known - good battery sensor and check for proper operation. If the problem is corrected, replace battery sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
