Auto Up/Down & Auto Down Switch Connector End Views

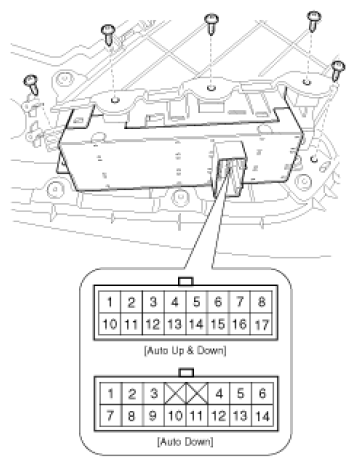

Fig 1: Auto Up/Down & Auto Down Switch Connector End Views

G06496258

Courtesy of KIA MOTORS AMERICA, INC.
