Schematic Diagram

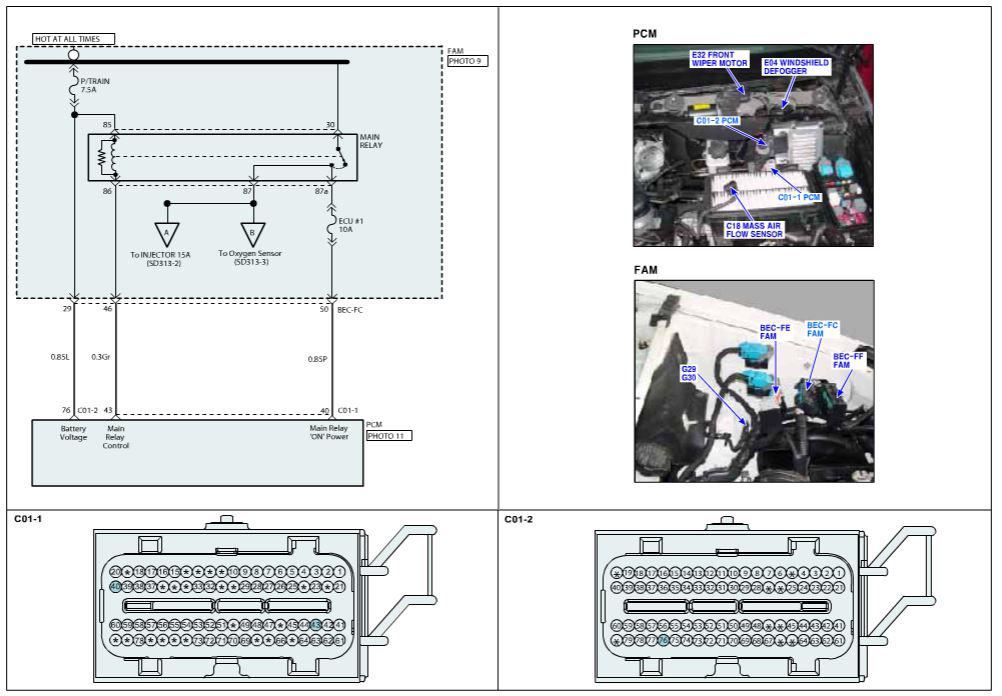

Fig 1: ECM/PCM Power Relay Control Circuit/Open - Schematic Diagram

G06837030

Courtesy of KIA MOTORS AMERICA, INC.
