Schematic Diagram

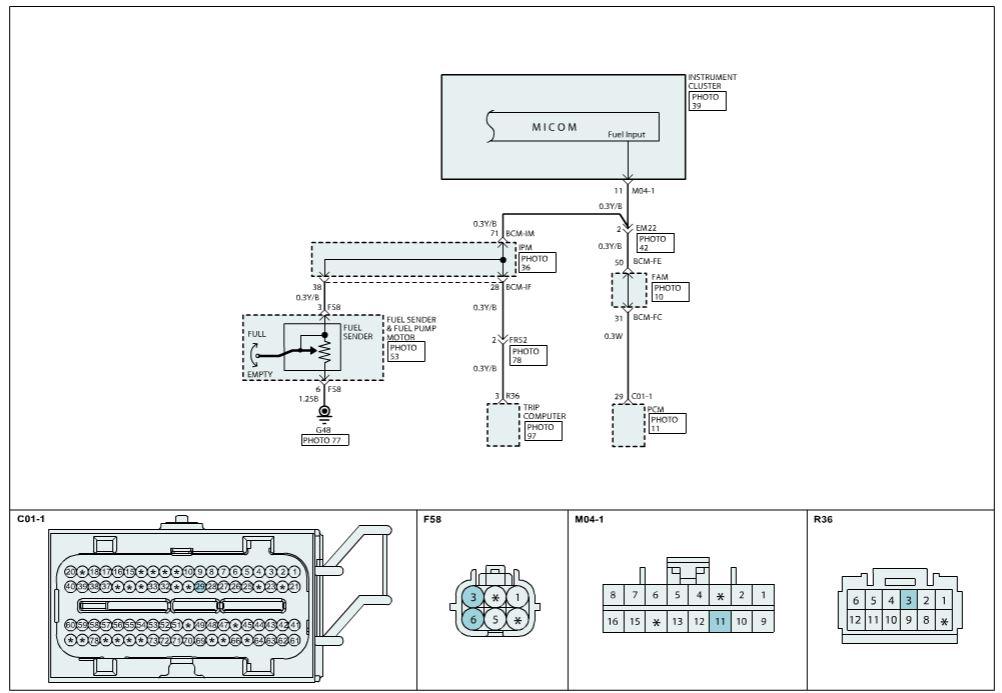

Fig 1: Fuel Level Sensor A Circuit Low Input - Schematic Diagram (1 Of 2)
G06836874Courtesy of KIA MOTORS AMERICA, INC.

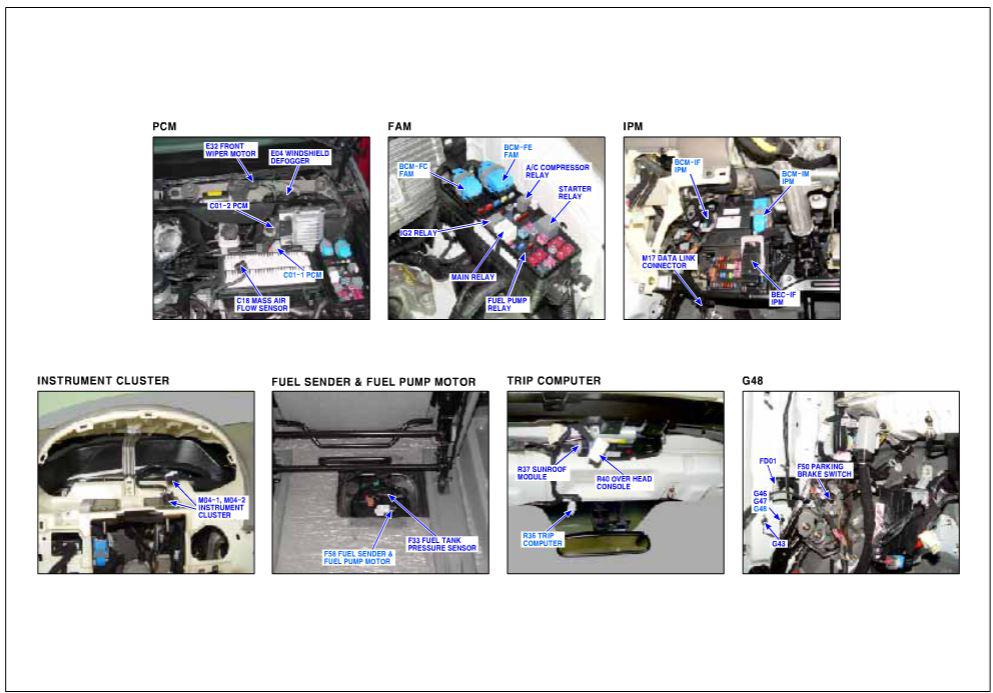

Fig 2: Fuel Level Sensor A Circuit Low Input - Schematic Diagram (2 Of 2)
G06836875Courtesy of KIA MOTORS AMERICA, INC.
